EPR insulated marine control cable

EPR insulated marine control cable

EPR insulated marine control cable application

The cable is mainly suitable for all kinds of ships and offshore oil platforms andbuildings control system.

EPR insulated marine control cable standards&certificates

IEC 60092-350

IEC 60092-376

IEC 60332-1-2

IEC 60332-3-22

IEC 60754-1/2

IEC 61034

CCS、ABS、DNV、BV、GL、LR、NK、KR、RINA、RS

EPR insulated marine control cable Service condition

1.Rated Voltage:U0/U(Um):150/250(300)V

2.Long term allowable working temperature:90℃

3.When short circuit,duration less than 5s,conductor max. temperature no more than 250℃

4.Laying temperature no less than 0℃,bending radius for single core should be no less than 10D,multi core cable should be no less than 6D,D stands for cable diameter.

EPR insulated marine control cable Model

Model	Combustion	Name
CKEF	DA/SA/NA	EPR insulated PCP sheath marine control cable
CKEF80	DA/SA/NA	EPR insulated PCP inner sheath bare copper wire braid armored marine control cable
CKEF82	DA/SA/NA	EPR insulated PCP inner sheath bare copper wire braid armored PVC outer sheath marine control cable
CKEF90	DA/SA/NA	EPR insulated PCP inner sheath baresteel wire braid armored marine control cable
CKEH	DA/SA/NA	EPR insulatedCSP sheath marine control cable
CKEH80	DA/SA/NA	EPR insulatedCSP inner sheath bare copper wire braid armored marine control cable
CKEH90	DA/SA/NA	EPR insulatedCSP inner sheath baresteel wire braid armored marine control cable
CKEH92	DA/SA/NA	EPR insulatedCSP inner sheath baresteel wire braid armored PVC outer sheathmarine control cable
CKEV	DA/SA/NA	EPR insulated PVC sheath marine control cable
CKEV80	DA/SA/NA	EPR insulated PVC inner sheath bare copper wire braid armored marine control cable
CKEV90	DA/SA/NA	EPR insulated PVC inner sheath baresteel wire braid armored marine control cable
CKEV92	DA/SA/NA	EPR insulated PVC inner sheath baresteel wire braid armored PVC outer sheath marine control cable

EPR insulated marine control cable specification

Model	Core	Nominal Cross-sectionmm2
CKEF/DA/SA/NA、CKEF80/DA/SA/NA、CKEF90/DA/SA/NA、CKEF82/DA/SA/NA、CKEF92/DA/SA/NA、CKEH/DA/SA/NA、CKEH80/DA/SA/NA、CKEH90/DA/SA/NA、CKEH82/DA/SA/NA、CKEH92/DA/SA/NA、CKEV/DA/SA/NA、CKEV80/DA/SA/NA、CKEV90/DA/SA/NA、CKEV82/DA/SA/NA、CKEV92/DA/SA/NA、	2～61	0.5～2.5
Note:Unlisted model can be produced as customer requested.

EPR insulated marine control cable product code

Code	Insulation	Code	Inner Sheath	Code	Armor	Code	Outer Sheath
J	XLPE	PF	SHF1	8	Tinned Copper Wire Braided	5	SHF2
		PJ	SHF2			6	SHF1

Code	Definition	Code	Definition
S	Bundled Burning	C	Halogen Free、Low Smoke

Core Shield ---------P

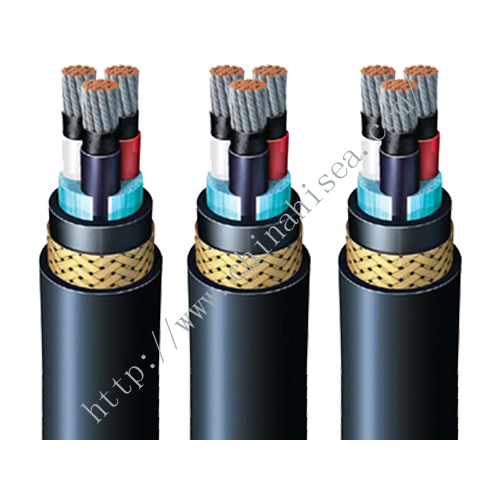

EPR insulated marine control cable Structure
