Optical Fiber Composite Low-voltage Cable

Optical Fiber Composite Low-voltage Cable

Optical Fiber Composite Low-voltage Cable Application

Optical Fiber Composite Low-voltage Cable(OPLC)compounded the optical element in the internal low voltage power cables ,has ability of the power transmission and optical communications. This product is suitable for rated voltage 0.6/1kV and below voltage ,fiber access smart grid network and multi-distribution integration network cable.

1,for indoor wiring,room,Corridor,Mansion vertical, horizontal,and building rim wiring

2,For optical communication equipment rooms and optical distribution frame optical connections and optical instruments, equipment optical connections .

3,Pigtails and jumpers for connecting

4,For network base station construction

Optical Fiber Composite Low-voltage Cable Service Condition

1,rated voltage U0U (Um) is 0.6/kV, highest system voltage Um is 1.2kV;

2,PVC cable conductor allowed the maximum operating temperature of 70 ° C, cross-linked polyethylene cable conductor allowed the maximum operating temperature of 90 ° C;

3,PVC cable short circuit ( the longest duration of no more than 5S), the conductor temperature does not exceed 160 ° C, XLPE short circuit ( the longest duration of no more than 5S) , the conductor temperature does not exceed 250 ° C;

4,The ambient temperature is not lower than 0 ° C while installation;

5,Joined optical units , the OPLC cable have the ability of organic integration of power and telecommunications networks, radio networks , the Internet and other network.

Optical Fiber Composite Low-voltage Cable standards

sheathed cable comply with UL OFNR, OFNP requirements.

Optical Fiber Composite Low-voltage Cable Structural parameters

Operating temperature	-20 ℃ ~ +60 ℃
Riser Flame Rating	Type OFNR / OFN FT4
Plenum Flammability Rating	Type OFNR / OFN FT6
Jacket Material	PVC or LSZH or PE

Optical		Cores	Optical Cable O.D.（mm)	Cross-Section（mm)	Weight(kg/km)	Tensile force		Crush Force		Bending Radius
						Short term （N)	Long term （N)	Short Term （N)	Long term （N)	Short Term （N)	Long Term （N)
KT-OPLC-HYF2F2PE1		2	8.0	18AWG	45.0	1200	400	1000	300	20D	10D
KT-OPLC-HYF4F2PE1		4	8.5	18AWG	45.0	1200	400	1000	300	20D	10D
KT-OPLC-HYF6F2PE1		6	8.5	18AWG	45.0	1200	400	1000	300	20D	10D
KT-OPLC-HYF8F2PE1		8	10.0	18AWG	55.0	1200	400	1000	300	20D	10D
KT-OPLC-HYF12F2PE1		12	12.5	18AWG	65.0	1200	400	1000	300	20D	10D

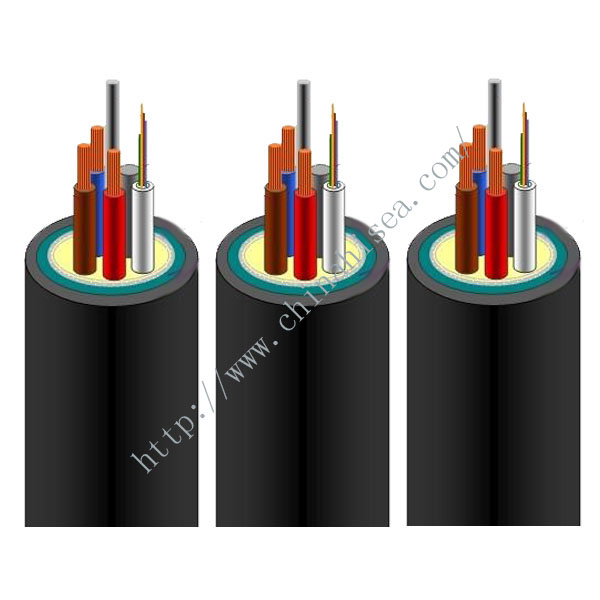

Optical Fiber Composite Low-voltage Cable Structure

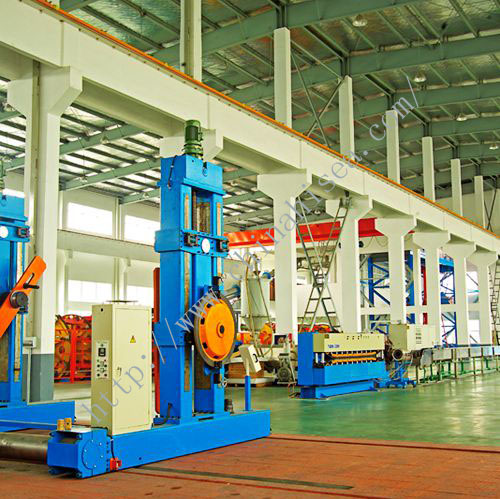

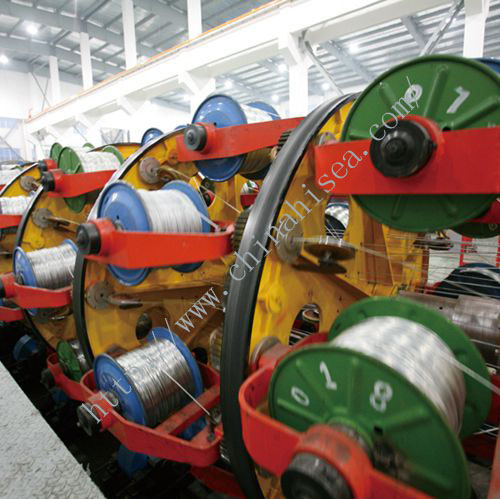

Optical Fiber Composite Low-voltage Cable Workshop
