Rubber insulated Nitrile sheathed leading cable
Rubber insulated Nitrile sheathed leading cable
Rubber insulated Nitrile sheathed leading cable application
This product is AC rated voltage 1140V and below class B insulation motor, electrical winding connection and leads the cabinet or on the housing and the motor winding terminal connection wires.
Rubber insulated Nitrile sheathed leading cable Model
| Model | Name |
| JF(JBF) |
Copper Core NBR PVC Compound insulated motor winding leading cable(Wire) |
| JV(JBV) | Copper Core PVC Insulated motor winding leading cable(wire) |
| JXN(JBQ) | Copper Core Rubber insulated NBR sheathed motor winding leading flexible wire |
| JXF(JBHF) | Copper Core Rubber insulated Chloroprene sheathed motor winding leading flexible cable(wire) |
Rubber insulated Nitrile sheathed leading cable Service Condition
Cable ( wire ) conductor long-term operation temperature,70 ℃
Cable ( Wire ) laying allowable bending radius should not be less than 4 times diameter of the the cable ( wire ) .
Cable ( Wire ) laying allowable bending radius should not be less than 4 times diameter of the the cable ( wire ) .
Rubber insulated Nitrile sheathed leading cable Specification
JBQ 500V
|
Nominal Cross-section (mm2) |
Conductor Structure(mm)
|
Nominal Insulation Thickness
(mm) |
Sheath Nominal Thickness
(mm) |
Cable Max. Outer Dia.
(mm) |
Reference Weight
(kg/km) |
20℃ Conductor Resistance
≤(Ω/km) |
|
|
Single Core Number
|
Single Diameter
|
||||||
|
0.5
|
28
|
0.15
|
0.6
|
0.8
|
4.3
|
20
|
38.5
|
|
0.75
|
42
|
0.15
|
0.6
|
0.8
|
4.5
|
24
|
25.7
|
|
1.0
|
32
|
0.20
|
0.6
|
0.8
|
4.7
|
28
|
18.9
|
|
1.5
|
48
|
0.20
|
0.6
|
0.8
|
5.0
|
35
|
12.6
|
|
2.5
|
19
|
0.41
|
0.8
|
1.0
|
6.2
|
57
|
7.59
|
|
4
|
19
|
0.52
|
0.8
|
1.0
|
6.8
|
76
|
4.54
|
|
6
|
19
|
0.64
|
0.8
|
1.0
|
4.5
|
100
|
3.00
|
|
10
|
49
|
0.52
|
1.0
|
1.2
|
10.0
|
178
|
1.78
|
|
16
|
49
|
0.64
|
1.0
|
1.2
|
11.2
|
243
|
1.18
|
|
25
|
98
|
0.58
|
1.0
|
1.4
|
13.7
|
372
|
0.716
|
|
35
|
133
|
0.58
|
1.0
|
1.4
|
14.8
|
471
|
0.528
|
|
50
|
133
|
0.68
|
1.2
|
1.6
|
17.1
|
647
|
0.384
|
|
70
|
189
|
0.68
|
1.2
|
1.6
|
19.6
|
879
|
0.270
|
|
95
|
259
|
0.68
|
1.4
|
1.6
|
21.9
|
1160
|
0.197
|
|
120
|
259
|
0.76
|
1.6
|
1.8
|
24.6
|
1451
|
0.158
|
|
150
|
320
|
0.76
|
1.8
|
2.2
|
29
|
1911.5
|
0.132
|
|
185
|
395
|
0.76
|
1.8
|
2.2
|
32
|
2268.65
|
0.108
|
|
240
|
513
|
0.76
|
2.2
|
3
|
35
|
3010
|
0.0817
|
|
300
|
641
|
0.76
|
2.4
|
3.5
|
38
|
3770
|
0.654
|
JBQ 1140V
|
Nominal Cross-section(mm2)
|
Conductor Structure(mm)
|
Nominal Insulation Thickness
(mm) |
Sheath Nominal Thickness
(mm) |
Max. Cable O.D
(mm) |
Reference Weight
(kg/km) |
20℃ Conductor Resistance
≤(Ω/km) |
|
|
Single Core Number
|
Single Core Dia.
|
||||||
|
0.5
|
28
|
0.15
|
0.6
|
0.8
|
4.3
|
20
|
38.5
|
|
0.75
|
42
|
0.15
|
0.6
|
0.8
|
4.5
|
24
|
25.7
|
|
1.0
|
32
|
0.20
|
0.6
|
0.8
|
4.7
|
28
|
18.9
|
|
1.5
|
48
|
0.20
|
0.6
|
0.8
|
5.0
|
35
|
12.6
|
|
2.5
|
19
|
0.41
|
0.8
|
1.0
|
6.2
|
57
|
7.59
|
|
4
|
19
|
0.52
|
0.8
|
1.0
|
6.8
|
76
|
4.54
|
|
6
|
19
|
0.64
|
0.8
|
1.0
|
4.5
|
100
|
3.00
|
|
10
|
49
|
0.52
|
1.0
|
1.2
|
10.0
|
178
|
1.78
|
|
16
|
49
|
0.64
|
1.0
|
1.2
|
11.2
|
243
|
1.18
|
|
25
|
98
|
0.58
|
1.0
|
1.4
|
13.7
|
372
|
0.716
|
|
35
|
133
|
0.58
|
1.0
|
1.4
|
14.8
|
471
|
0.528
|
|
50
|
133
|
0.68
|
1.2
|
1.6
|
17.1
|
647
|
0.384
|
|
70
|
189
|
0.68
|
1.2
|
1.6
|
19.6
|
879
|
0.270
|
|
95
|
259
|
0.68
|
1.4
|
1.6
|
21.9
|
1160
|
0.197
|
|
120
|
259
|
0.76
|
1.6
|
1.8
|
24.6
|
1451
|
0.158
|
|
150
|
320
|
0.76
|
1.8
|
2.2
|
29
|
1911.5
|
0.132
|
|
185
|
395
|
0.76
|
1.8
|
2.2
|
32
|
2268.65
|
0.108
|
|
240
|
513
|
0.76
|
2.2
|
3
|
35
|
3010
|
0.0817
|
|
300
|
641
|
0.76
|
2.4
|
3.5
|
38
|
3770
|
0.654
|

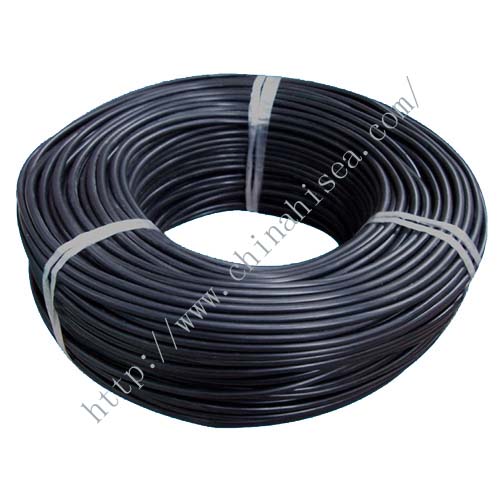

Rubber insulated Nitrile sheathed leading cable show
