Biochemical Domestic Sewage Treatment Unit

Biochemical Domestic Sewage Treatment Unit

1. General introduction

The Biochemical Domestic Sewage Treatment Unit has been examined and satisfactory tested in accordance with the International Maritime Organisation Resolution MEPC.159 (55) to meet the operational requirements referred to in regulation 9.1.1 of Annex IV of the International Convention for the Prevention of Pollution from Ships, 1973/1978.

2. Basic principle

The Biochemical Domestic Sewage Treatment Unit consists of 5 water tight tank bodies. These 5 tank bodies respectively aeration tank, 1st stage contact tank, 2nd stage contact tank, settlement tank and sterilization catchment tank etc.

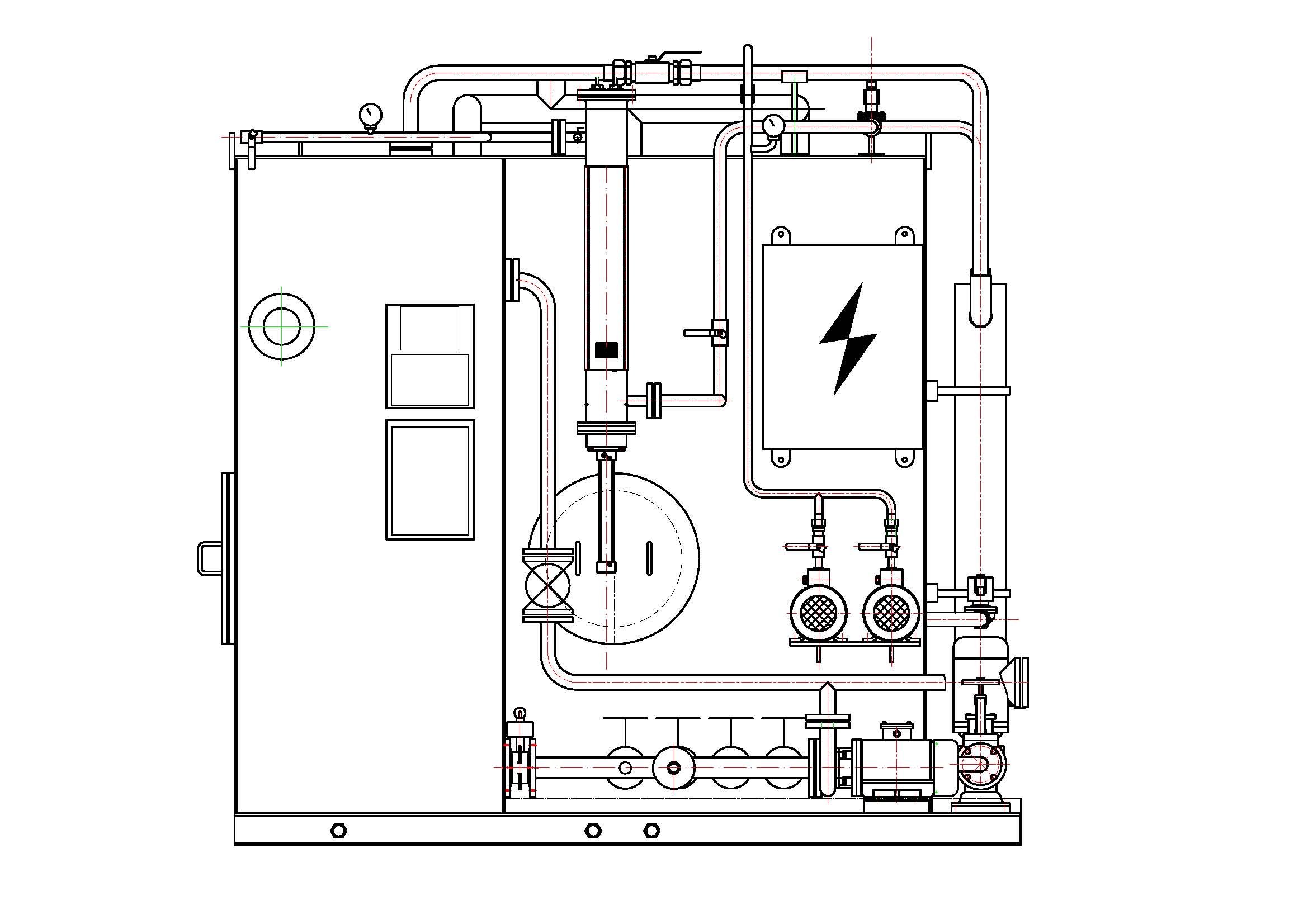

3. Genaral Drawing

marine sewage treatment plant.jpg

4. Technical Parameters


Model

WCBx

-10B

WCBx

-15B

WCBx

-20B

WCBx

-25B

WCBx

-30B

WCBx

-40B

WCBx

-50B

WCBx

-60B

WCBx

-80B

WCBx

-100B

WCBx

-150B

WCBx

-200B

WCBx

-300B

WCBx

-400B

WCBx

-500B

WCBx

-600B

Capacity (person)

10

15

20

25

30

40

50

60

80

100

150

200

300

400

500

600

Treatment load (t/d)

0.70

1.05

1.40

1.75

2.10

2.80

3.50

4.20

5.60

7.0

10.5

14

21

28

35

42

Organic load (kg/d)

0.35

0.53

0.70

0.88

1.05

1.40

1.75

2.10

2.80

3.50

5.25

7.0

10.5

14

17.5

21

Drain standard

BOD5≤25mg/L;COD≤125mg/L;TSS≤35mg/L;

Process Pump

Model

32CGW-10-20

2CWF-11

Type

Veryical type

Blade centrifugal type

Capacity (m3/h)

10

20

Power (Kw)

1.5

2.2

Air pump

Model

CYBW—10

CYBW—20

CYBW—40

Type

Sliding vane type

Displacement (m3/h)

10

20

40

Pressure (KPa)

60

Power (kw)

0.37

0.75

1.5

Crushing

pump

Model

0.5CWF-10

1CWF-11

2CWF-11

Type

Blade centrifugal type

Displacement (m3/h)

5

10

20

Power (Kw)

1.1

1.5

2.2

Ultrafilter

Model

CSUF–5060

CSUF–6050

Type

Advanced anti-soil ultrafiltration membrane

Flux (m3/h)

0.4-0.5

0.6-0.8

UV sterilizing plant

Model

DY-UV-GL-C

DY-UV-GL-D

DY-UV-GL-E

Wavelength (nm)

253.7

253.7

253.7

Power (Kw)

0.27

0.36

0.54

Displacement (m3/h)

1.5

2.0

2.5

Back flushing water pressure

0.1~ 0.25MPa

Power supply

3ph/AC380/50Hz or 3ph/AC 440V/60Hz

Control mode

Automatic/manual
