MBR Sewage Treatment Plant Factory

1. Marine Sewage Treatment Plant on Ship

Discharging of sewage in sea or territorial waters in banned as it can drastically affect the marine life. In case the sewage is to be discharged, first it has to be treated with the help of a sewage treatment plant.

STP is now mandatory on every ship, according to International legislature.

2. Marine Sewage Treatment Plant Factory

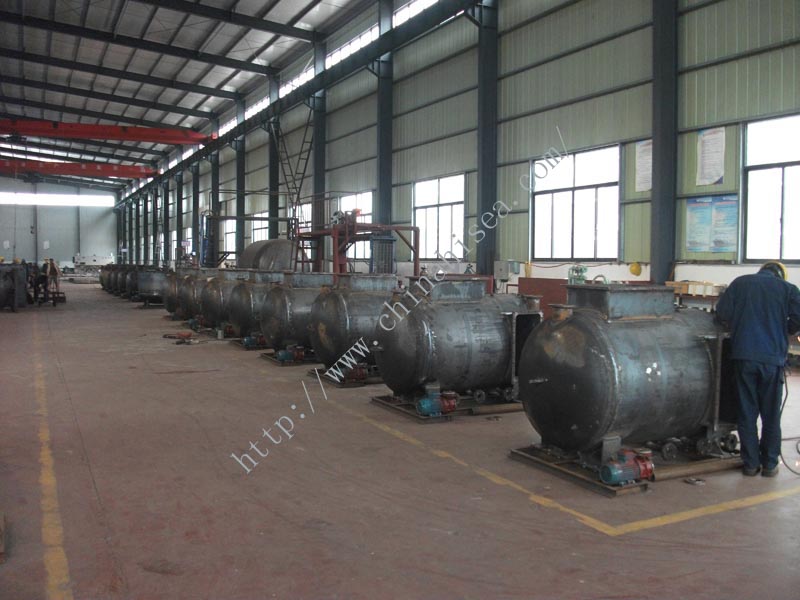

Hi-sea Marine Company is located in the largest industrial city-Chongqing, China. We are the MBR marine sewage treatment plant factory, manufacturer, designer, and exporter.

The plants which we produce are according to the MEPC.159(55) resolution enacted on 13 October 2006, which is called “new standards”. The convention (MARPOL 73/78) provides that all STPs installed on board on or after 1 January 2010 should meet the MEPC.159(55) resolution.

3. According to the marine sewage treatment plant, we can provide you CCS, EC, BV, USCG, LR, and ABS classification society certisficate.

4. Technical Models:

Model		SWCM-
Model		15	20	25	30	40	50	60	80	100	120	150	200	250	300	400
Load	Average load (L/d)	1190	1540	1890	2310	3080	3780	4480	6020	7700	9100	11200	14700	18200	23100	30800
	Peak load(L/h)	149	193	237	289	385	473	560	753	963	1138	1400	1838	2275	2888	3850
	Organic load (kgBOD5/d)	0.595	0.77	0.945	1.155	1.54	1.89	2.24	3.01	3.85	4.55	5.6	7.35	9.1	11.55	15.4
Rated capacity (men)		15	20	25	30	40	50	60	80	100	120	150	200	250	300	400
Max capacity(men)		17	22	27	33	44	54	64	86	110	130	160	210	260	330	440
Electricity		AC 380V/50Hz/3φ, AC 415V/50Hz/3φ, AC 440/60Hz/3φ
Power(kW)		2.5	2.5	2.5	2.5	3.0	3.0	3.5	4.0	4.0	4.0	6.0	6.0	7.0	9.0	11
External dimension (mm) L×W×H		1870 × 1200 × 1400	1745 × 1400 × 1525	1935 × 1400 × 1560	1985 × 1500 × 1650	2400 × 1600 × 1700	2410 × 1700 × 1850	2670 × 1700 × 1850	2780 × 1900 × 2050	2795 × 2000 × 2200	3000 × 2000 × 2200	3050 × 2200 × 2300	3600 × 2200 × 2350	3880 × 2400 × 2570	4750 × 2400 × 2570	5950 × 2400 × 2570
Weight	Dry weight(kg)	1000	1000	1200	1200	1300	1450	1600	1850	2200	2300	2800	3000	3300	3700	4200
Weight	Wet weight(kg)	2283	2640	2740	3500	4400	5073	5270	6517	8268	9166	11340	13267	16538	20357	25417
Effluent standard		BOD5≤25mg/L, COD≤125mg/L, TSS≤35mg/L, coliform≤100/100ml, PH6~8.5, CL2≤0.5mg/L
