Biochemical Marine Sewage Treater

1. Biochemical Marine Sewage Treater Description

Biochemical marine sewage treater used for srorage of raw waste water or solid residue processed by sewage treatment plant for various types of vessels.Also work with the sewage treatment plant to for a complete set for forwarding counter use. This device has the features of dosing disinfection, residue crushing, cabinets washing and discharging the treated waste water residue to the outboard row. The storage cabinet structure is simple and wasy to operate and the quality of water which is procedded in line with the requirement of IMO shredders and collection tank.

2. Biochemical Marine Sewage Treater Technical Pinciples:

Raw waste water or solid residues treated by sewage treatment plant get into the sterilized manure storage cabinet, assumulating to a certain level in it, then to start the smashing pump. To make waste water or solid residue runs the repeated cycle of crushing, adding to drugs to it for disinfection at the same time. When waste water or solid residue crushed to a certain degree, we can send the waste water to the shore reception facilities through the international emission joint on the deck, or discharge directly to the outboard in the non-controlled sea area.

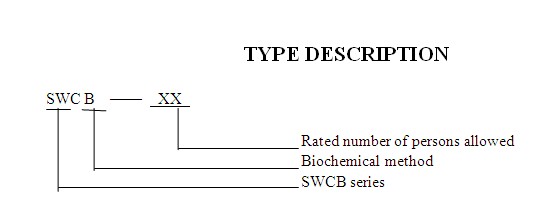

3. Biochemical Marine Sewage Treater Models Description and Data

Marine Sewage Treatment processor.jpg

Model			SWCB
Model			6	10	15	20		25	30	40	50	60	80	100	150	200	250	300
Load	Average load （L/d）		490	840	1190	1540		1890	2310	3080	3780	4480	6020	7700	11200	14700	18200	23100
	Peak load （L/h）		62	105	149	193		237	289	385	473	560	753	963	1400	1838	2275	2888
	Organic load (kgBOD5/d）		0.245	0.42	0.595	0.77		0.945	1.155	1.54	1.89	2.24	3.01	3.85	5. 6	7.35	9.10	11.55
Rated capacity （P）			6	10	15	20		25	30	40	50	60	80	100	150	200	250	300
Max capacity （P）			7	12	17	22		27	33	44	54	64	86	110	160	210	260	330
Electricity			AC 380V/50Hz/3φ, AC 440 V/60Hz/3φ, optional
Power（kw）			1.5	1.5	1.5	1.5	1.5		1.5	1.5	2.0	2.0	2.5	2.5	3.0	3.0	3.0	3.0
External dimensions（mm） Length×width×height			1000 × 1170 × 1250	1300 × 1170 × 1380	1450 × 1320 × 1430	1500 × 1420 × 1480	1550 × 1470 × 1530		1650 × 1570 × 1680	1750 × 1670 × 1880	2000 × 1770 × 1850	2100 × 1920 × 1880	2500 × 2020 × 1930	2800 × 2200 × 2080	3200 × 2350 × 2250	3500 × 2750 × 2250	3800 × 2850 × 2250	4300 × 3150 × 2250
Weight		Dry weight（kg）	900	1050	1150	1200	1250		1350	1500	1750	1950	2150	2900	3800	4050	5000	6000
Weight		Wet weight（kg）	1580	2100	2600	2933	3210		3928	4689	5665	6486	8100	10400	14680	18330	22100	28172
Discharge standard			BOD5≯50mg/L, SS≯50mg/L, Colichin≯250pc/100ml, PH6～9
