Pear Shaped Anchor Shackle:

Pear shaped anchor shackle can be used to connect the anchor-chain to the anchor. In the USA it often replace the D type anchor shackle used in the rest of the world. It can also connect a smaller chain to a bigger chain.
Pear shaped anchor shackle in every size from dia 19mm-114mm always supply. Bigger pear shackle on request.

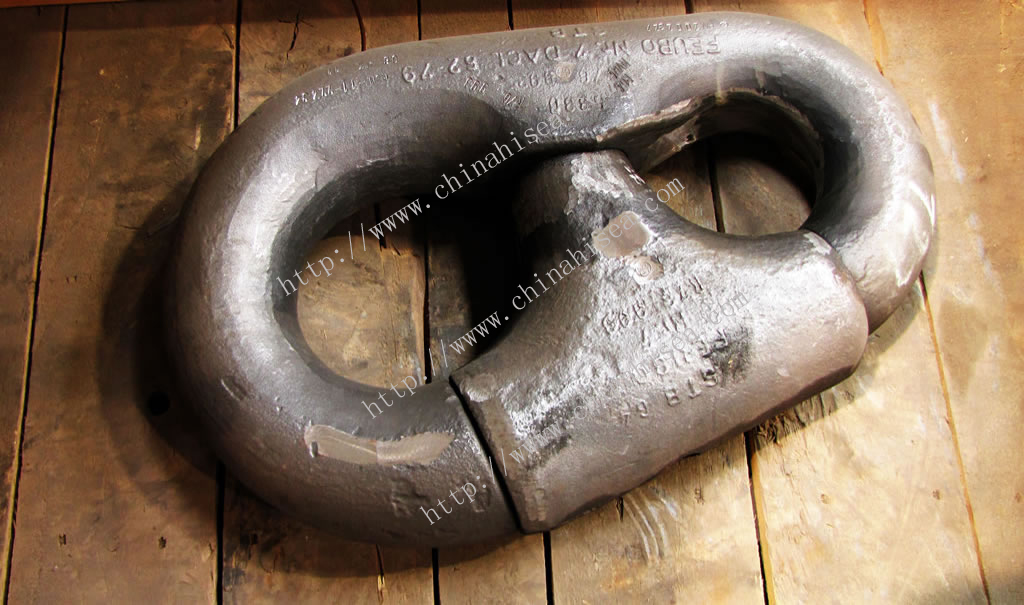

pear-shaped anchor shackle.jpg

Pear Shaped Anchor Shackle

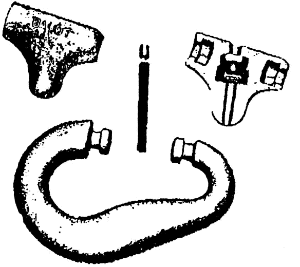

dismantling of pear shaped anchor shackle.gif

Dismantling of Pear Shaped Anchor Shackle

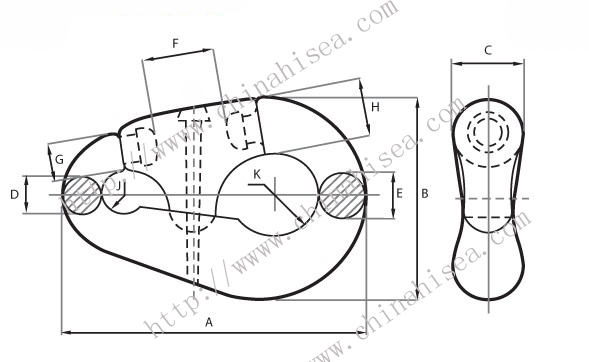

pear shaped anchor-shackle.jpg

Pear Shaped Anchor Shackle Process Drawing

See specification table at the bottom of the page for sizes and dimensions.

DN A B C D E F G H J K Kg
mm mm mm mm mm mm mm mm mm mm mm kg
19-24 194 132 38 24 32 57 24 35 17 31 3
25-30 238 167 46 30 38 66 33 45 19 35 6.5
32-40 298 206 59 40 48 83 40 x 45 57 26 43 13
42-51 378 260 76 51 64 100 59 x 61 74 32 53 27
52-60 454 313 92 60 76 121 73 x 62 88 38 65 49
62-79 562 376 117 79 95 149 79 x 86 111 48 76 95
81-92 654 419 133 92 124 149 102 x 111 130 x 134 54 80 150
94-95 692 435 146 98 130 159 124 x 137 142 57 83 236
97-102 889 572 191 121 165 191 130 181 73 108 386
103-111 940 610 203 127 175 203 146 x 156 194 76 111 420
110-114 991 648 216 133 184 216 165 x 175 204 105 115 460

Contact our sales staff for prices and availability.
