marine fibre optic cable

marine fibre optic cable

marine fibre optic cable

marine fibre optic cable application

This cable is used on petrol platforms to transmit information.

marine fibre optic cable Standards

YD/T 901-2009

IEC 60332-1-2

marine fibre optic cable Service Condition

Temperature:-40℃ to 60℃

marine fibre optic cable Specification

Number of Core GYTA
Diameter Reference Weight(kg/km)
Min. Max.
4-30 11.5 13.5 175
Item Unit Technical Parameter
Single Mode Multi Mode
Fibre Type B1.3 A1a A1b
Core Diameter μm 8.6~9.5 50±3 62.5±3
Wrap Diameter μm 125±1 125±3 125±3
Fibre Max Attenuation dB/kM

1310nm,≤0.36

1550nm,≤0.22

850nm,≤2.7

1300nm,≤1.0

850nm,≤3.5

1300nm,≤1.5

Tensile(short term/long term) N 1500/600
Crush(short term/long term) N/100m 1500/600

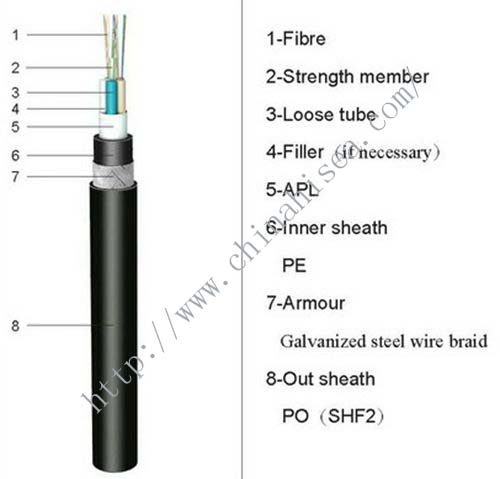

marine fibre optic cable Structure

marine fiber optic cable structure.jpg

More detailed information can be offered upon customer request.Simply drop a message below.We will get to you ASAP.
