Swivel Anchor Chain Releaser
Swivel Anchor Chain Releaser:
Anchor chain releaser is the device in case of sudden danger emergency abandoned anchor ship.
Anchor chain releaser handles are stored outside the cabin, without cutting off the chain to the separation of the anchor chain and hull, also does not need the personnel to enter the chain store tank, used on board ship encountered when improving the safety factors of sudden danger. Anchor chain releaser and chain store bulkhead welding, and the end link fastened. End link cab by the human release, because the operating handle just in stored outside the cabin.
In the storm or the storm, when the chain will have a huge tension, and anchor at the end of the stopper plate rupture or shedding, anchor in the non-control state swing back and forth, when considering the force may give the hull damage caused and endanger the ship, we should use the Anchor chain releaser to abandon the chain.

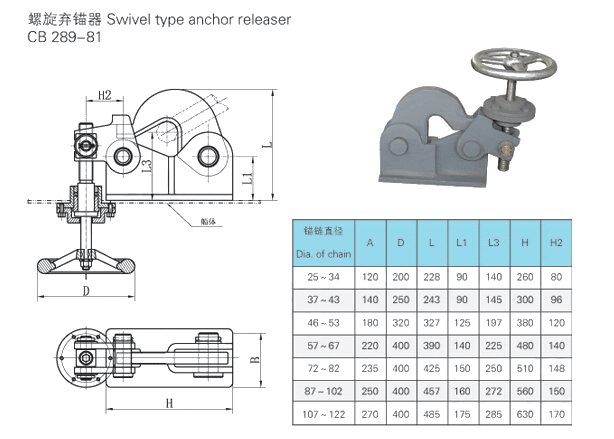

Dia of chain | A | D | L | L1 | L3 | H | H2 |
25-34 | 120 | 200 | 228 | 90 | 140 | 260 | 80 |
37-43 | 140 | 250 | 243 | 90 | 145 | 300 | 96 |
46-53 | 180 | 320 | 327 | 125 | 197 | 380 | 120 |
57-67 | 220 | 400 | 390 | 140 | 225 | 480 | 140 |
72-82 | 235 | 400 | 425 | 150 | 250 | 510 | 148 |
87-102 | 250 | 400 | 547 | 160 | 272 | 560 | 150 |
107-122 | 270 | 400 | 485 | 175 | 285 | 630 | 170 |
