Ship Anchor Chain

Ship Anchor Chain

Ship Anchor Chain:

We are the marine chain supplier since 1996, supply stud link anchor chain, studless link anchor chain and mooring chain. ABS, LR, DNV, GL, BV, NK, IRS, CCS Certificate are available for our chains. With the advantage of good quality and after-sale service, we would be your reliable partner in China.

1.mainly used:ship.

2.material:CM490,CM690.

3.finish:galvanized or black painted.

4.HS Code:73158200

ship anchor chain.JPG

Ship anchor chain factory

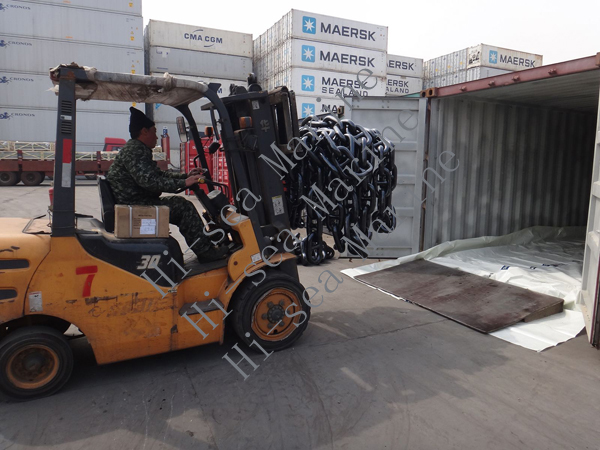

anchor chain packaging.JPG

Ship anchor chain loading and transport

Product Process.jpg

Product Process

anchor chain D-CONECT.jpg

Anchor Chain D-Conect

Anchor chain KS-JOINING.jpg

Anchor chain KS-Joining


Anchor chain specifications:

Chain
diameter 		Grade1 Grade2 Grade3 ORQ R3 R4 Number of
links per
27.5 mtr
inches mm Proof load
kN 		Breaking
load
kN 		Proof load
kN 		Breaking
load
kN 		Proof load
kN 		Breaking
load
kN 		Proof load
kN 		Breaking
load
kN 		Proof load
kN 		Breaking
load
kN 		Proof load
kN 		Breaking
load
kN
1/2 12.5 46 66 66 92 92 132 - - - - - - 549
9/16 14 58 82 82 116 116 165 - - - - - - 491
5/8 16 76 107 107 150 150 216 - - - - - - 429
11/16 17.5 89 127 127 179 179 256 - - - - - - 391
3/4 19 105 150 150 211 211 301 215 324 227 342 331 420 357
13/16 20.5 123 175 175 244 244 349 249 376 263 397 385 488 329
7/8 22 140 200 200 280 280 401 286 431 303 456 442 560 305
15/16 24 167 237 237 332 332 476 339 511 359 541 524 664 285
1 26 194 278 278 389 389 556 397 598 419 632 612 776 259
1 1/8 28 225 321 321 449 449 642 458 691 485 730 707 897 245
1 3/16 30 257 368 368 514 514 735 524 790 554 835 809 1026 225
1 1/4 32 291 417 417 583 583 833 594 895 628 946 917 1163 213
1 5/16 34 328 468 468 655 655 937 668 1007 706 1064 1031 1308 195
1 7/16 36 366 523 523 732 732 1050 746 1124 789 1188 1151 1460 187
1 1/2 38 406 581 581 812 812 1160 828 1248 875 1319 1278 1621 179
1 9/16 40 448 640 640 896 896 1280 914 1377 966 1456 141 1789 171
1 5/8 42 492 703 703 981 981 1400 1004 1513 1061 1599 1548 1964 165
1 3/4 44 538 769 769 1080 1080 1540 1097 1654 1160 1748 1693 2147 153
1 13/16 46 585 837 837 1170 1170 1680 1194 1800 1263 1903 1843 2338 147
1 7/8 48 635 908 908 1270 1270 1810 1295 1952 1369 2063 1999 2535 143
2 50 686 981 981 1370 1370 1960 1400 2110 1480 2230 2160 2740 137
2 1/16 52 739 1060 1060 1480 1480 2110 1508 2273 1594 2402 2327 2952 129
2 1/8 54 794 1140 1140 1590 1590 2270 1620 2441 1712 2580 2499 3170 125
2 3/16 56 851 1220 1220 1710 1710 2430 1735 2615 1834 2764 2677 3396 123
2 5/16 58 909 1290 1290 1810 1810 2600 1854 2794 1960 2953 2860 3628 119
2 3/8 60 969 1380 1380 1940 1940 2770 1976 2978 2089 3147 3048 3867 113
2 7/16 62 1030 1470 1470 2060 2060 2940 2101 3166 2221 3347 3242 4112 111
2 1/2 64 1100 1560 1560 2190 2190 3130 2230 3360 2357 3551 3440 4364 107
2 5/8 66 1160 1660 1660 2310 2310 3300 2361 3559 2496 3761 3643 4621 105
2 11/16 68 1230 1750 1750 2450 2450 3500 2496 3762 2639 3976 3851 4885 99
2 3/4 70 1290 1840 1840 2580 2580 3690 2634 3970 2785 4196 4064 5156 97
2 7/8 73 1390 1990 1990 2790 2790 3990 2847 4291 3010 4535 4392 5572 93
3 76 1500 2150 2150 3010 3010 4300 3066 4621 3242 4884 4731 6001 89
3 1/16 78 1580 2260 2260 3160 3160 4500 3216 4847 3400 5123 4962 6295 87
3 3/16 81 1690 2410 2410 3380 3380 4820 3446 5194 3643 5490 5317 6745 85
3 5/16 84 1800 2580 2580 3610 3610 5160 3683 5550 3893 5866 5682 7208 81
3 7/16 87 1920 2750 2750 3850 3850 5500 3925 5916 4149 6252 6056 7682 79
3 9/16 90 2050 2920 2920 4090 4090 5840 4173 6289 4412 6647 6439 8167 77
3 5/8 92 2130 3040 3040 4260 4260 6080 4342 6544 4590 6916 6699 8497 73
3 3/4 95 2260 3230 3230 4510 4510 6440 4599 6932 4862 7326 7096 9001 71
3 13/16 97 2340 3340 3340 4680 4680 6690 4774 7195 5047 7604 7365 9343 71
3 15/16 100 2470 3530 3530 4940 4940 7060 5040 7596 5328 8028 7776 9864 69
4 102 2560 3660 3660 5120 5120 7320 5220 7868 5519 8315 8054 10217 67
4 1/8 105 2700 3850 3850 5390 5390 7700 5495 8282 5809 8753 8478 10754 65
4 3/16 107 2790 3980 3980 5570 5570 7960 5681 8561 6005 9048 8764 11118 63
4 3/8 111 2970 4250 4250 5940 5940 8480 6058 9130 6404 9650 9347 11856 61
4 1/2 114 3110 4440 4440 6230 6230 8890 6346 9565 6709 10109 9791 12420 59
4 5/8 117 3260 4650 4650 6510 6510 9300 6639 10005 7018 10574 10242 12993 57
4 3/4 120 3400 4850 4850 6810 6810 9720 6935 10452 7331 11047 10700 13573 57
4 13/16 122 3500 5000 5000 7000 7000 9990 7135 10753 7542 11365 11008 13964 57
4 7/8 124 3600 5140 5140 7200 7200 10280 7336 11057 7755 11686 11319 14358 55
5 127 3750 5350 5350 7490 7490 10710 7641 11516 8078 12171 11789 14955 55
5 1/8 130 3900 5570 5570 7800 7800 11140 7950 11981 8404 12663 12265 15559 53
5 3/16 132 4000 5720 5720 8000 8000 11420 8157 12294 8623 12993 12585 15965 53
5 3/8 137 4260 6080 6080 8510 8510 12160 8682 13085 9178 13829 13395 16992 51
