Marine Electric Winch:
Electric driven winches are supplied in the range of 24mm U3 chain to 87mm U3 chain. The electric winches are of modular type, this means various combinations are available. Electric winches are made of high tensile materials and therefore compact and low weight.
Electric winches are designed in such a way that minimum maintenance is required ,The energy consumption is taken into account with high efficient bearings and effective controls systems.
Details:
1.Drive: Electric Driven
2.Configuration: Single/Double Drums
3.Drum Rope: P.P Rope or SWR
4.Brake: Spring Applied Pneumatically or Hydraulic Released Band Brake
5.Emergency Quick Release
6.Control: Local Control Console and remote Control Panel
Our Advantages:
1. High quality with competitive prices
2. Much experience in producting and exporting windlasses
3. Special design for different clients.
4. Short delivery time if clients need urgently

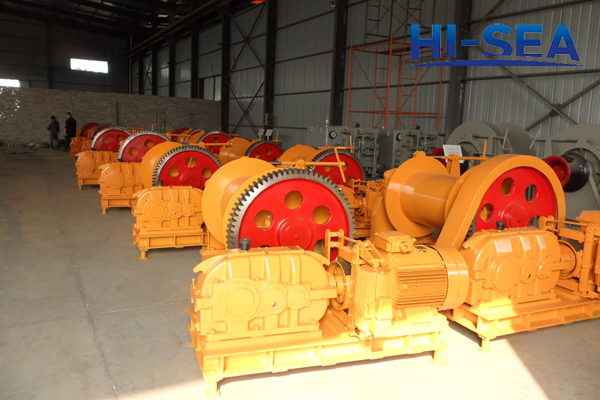

Marine Electric Winch

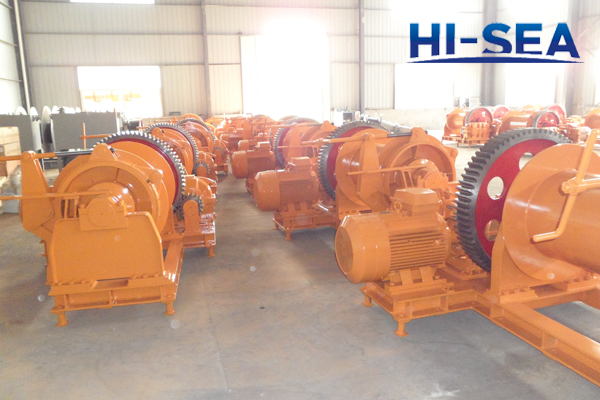

Marine Electric Winch
Specification Sheet:
Chain Dia. | Working Load (kN) | Working Speed (m/min) | Mooring Pull(kN) | Mooring Speed(m/min) | Motor Capacity(kW) |
ø12.5 | 6.6 | ≥9 | 5 | ≥9 | 2.2/0.75 |
ø14 | 8.3 | ≥9 | 6 | ≥9 | 2.2/0.75 |
ø16 | 10.9 | ≥9 | 8 | ≥9 | 2.2/0.75 |
ø17.5 | 13.0/14.6 | ≥9 | 10 | ≥9 | 3/1.3 |
ø19 | 15.3/17.2 | ≥9 | 10 | ≥9 | 4.3/1.7 |
ø20.5 | 17.9/20.0 | ≥9 | 15 | ≥9 | 4.3/1.7 |
ø22 | 20.6/23.0 | ≥9 | 15 | ≥9 | 6/2.5 |
ø24 | 24.5/27.4 | ≥9 | 20 | ≥9 | 8.5/3.5 |
ø26 | 28.7/32.1 | ≥9 | 20 | ≥9 | 8.5/3.5 |
ø28 | 33.3/37.2 | ≥9 | 25 | ≥9 | 8.5/3.5 |
ø30 | 38.3/42.8 | ≥9 | 30 | ≥9 | 11/11/7.5 |
ø32 | 43.5/48.6 | ≥9 | 30 | ≥9 | 11/11/7.5 |
ø34 | 49.1/54.9 | ≥9 | 40 | ≥9 | 16/16/11 |
ø36 | 55.1/61.6 | ≥9 | 40 | ≥9 | 16/16/11 |
ø38 | 61.4/68.9 | ≥9 | 50 | ≥9 | 16/16/11 |
ø40 | 68.0/76.0 | ≥9 | 60 | ≥9 | 22/22/16 |
ø42 | 75.0/83.8 | ≥9 | 60 | ≥9 | 22/22/16 |
ø44 | 82.3/92.0 | ≥9 | 70 | ≥9 | 22/22/16 |
ø46 | 89.9/100.5 | ≥9 | 80 | ≥9 | 30/30/22 |
ø48 | 97.9/109.4 | ≥9 | 80 | ≥9 | 30/30/22 |
ø50 | 106.3/118.8 | ≥9 | 90 | ≥9 | 30/30/22 |
ø52 | 114.9/128.4 | ≥9 | 100 | ≥9 | 30/30/22 |
ø54 | 123.9/138.5 | ≥9 | 100 | ≥9 | 45/45/30 |
ø56 | 133.3/149.0 | ≥9 | 120 | ≥9 | 45/45/30 |
ø58 | 143.0/159.8 | ≥9 | 120 | ≥9 | 45/45/30 |
ø60 | 153.0/171.0 | ≥9 | 140 | ≥9 | 45/45/30 |
ø62 | 163.4/182.6 | ≥9 | 150 | ≥9 | 45/45/30 |
ø64 | 174.1/194.6 | ≥9 | 160 | ≥9 | 60/60/45 |
ø66 | 185.1/206.9 | ≥9 | 160 | ≥9 | 60/60/45 |
ø68 | 196.5/219.6 | ≥9 | 180 | ≥9 | 60/60/45 |
ø70 | 208.3/232.8 | ≥9 | 200 | ≥9 | 60/60/45 |
For more structural type and parameters of the windlass, please contact with us for customize.
