FRP Insulation Pipe
FRP Insulation Pipe
Features of FRP Insulation Pipe:
Light weight, high strength and easy transport, installation and maintenance;
Excellent performance in corrosion resistance with a service life up to 30 years;
Smooth inner pipe wall surface with a good conveying performance and lower pumping costs;
Without scaling on the inner pile wall surface, ensuring a smooth surface after a long period of service;
Applied to hot media conveying such as hot spring water conveying, oilfield geothermal fluid conveying, heat supply system, etc.;
Excellent Insulation performance with a thermal conductivity coefficient of 0.39w/m.k;
Outer FRP pipe: low thermal conductivity coefficient (≈0.34kcal/m.℃; only 1/100-1/1000 of metals); undertaking external pressure; having a longer service life by adding UV absorber and aging resistance agent;
Insulation layer manufactured in the factory to reduce installation period;
Connection type: thread connection with features such as easy installation, high strength and high reliability;
Specifications of FRP Insulation Pipe:
DN (mm) |
Wall Thickness (mm) |
Insulation Layer Thickness (mm) |
Thickness of Outer Protection Pipe (mm) |
OD of Outer Protection Pipe (mm) |
Length (mm) |
Ambient Temp. (℃) |
Inlet Temp. (℃) |
Outlet Temp. (℃) |
100 |
5 |
42 |
3 |
200 |
1000 |
-45 |
80 |
79.88 |
150 |
5 |
42 |
3 |
250 |
1000 |
-45 |
80 |
79.52 |
200 |
5 |
41 |
4 |
300 |
1000 |
-45 |
80 |
79.32 |
250 |
5 |
41 |
4 |
350 |
1000 |
-45 |
80 |
79.20 |
300 |
6 |
39 |
5 |
400 |
1000 |
-45 |
80 |
79.16 |
400 |
6 |
39 |
5 |
500 |
1000 |
-45 |
80 |
79.02 |
500 |
7.5 |
37.5 |
5 |
600 |
1000 |
-45 |
80 |
78.90 |
Pictures of FRP Insulation Pipe:
FRP Insulation Pipe Structure
FRP Insulation Pipe Unfinished

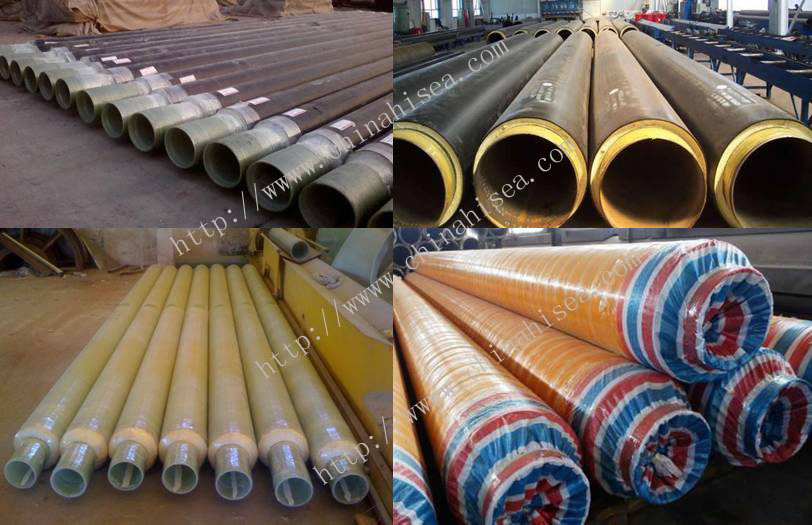

FRP Insulation Pipe Finished
FRP Insulation Pipe to Be Shipped
FRP Insulation Pipe - Polyurethane Foam
FRP Insulation Pipe under Construction
