FRP 3D FF Double-wall Tank

FRP 3D FF Double-wall Tank

Features of FRP 3D FF Double-wall Tank:

Automatic active 24-hour leakage monitoring;

Free of rust, corrosion and MIC forever;

UL certified;

Top-class resins such as Reichhold and Ashland;

Good anti-static property;

FF double walls: FRP outer wall + FRP inner wall;

Interlayer: 3D laminate (fiber glass fabrics) to connect and support the inner and the outer walls;

Outer wall integrated with stiffeners to enhance the strength of the tank structure;

Lighter weight and easier installation and maintenance;

Suitable for overground or underground service;

May be buried directly under roads;

Longer service life;

Specifications of FRP 3D FF Double-wall Tank:

Volume (m³)	Diameter (mm)	Length (mm)	Qty of Ground Anchors	Qty of Binding Belts
20	2590	4652	2	2
30	2590	6763	4	4
40	2590	8862	4	4
50	2590	10961	6	6
60	2800	8621	4	5

Pictures of FRP 3D FF Double-wall Tank:

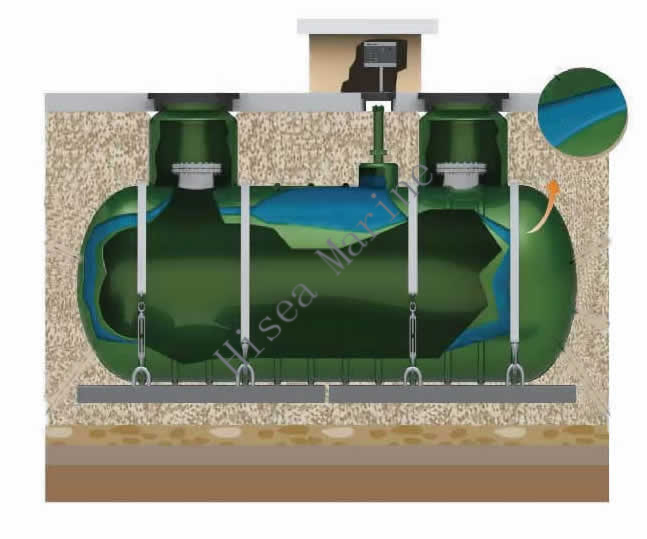

FRP 3D FF Double-wall Tank Structure

FRP 3D FF Double-wall Tank Wall Structure

FRP 3D FF Double-wall Tank Interlayer - 3D Fiber Glass Fabrics

FRP 3D FF Double-wall Tank Manhole

FRP 3D FF Double-wall Tank in Wokrshop

FRP 3D FF Double-wall Tank Installed
