Fluorine Lining Ball Valve:

1. Product Introduction:

*Certification:

(1). HSQ41F46 Type PN10, PN16

(2). Design Standard: GB12237

(3). Structure Length: GB12221

(4). Flange Standard: JB/T79-94 GB9113.1-26

(5). Inspection and Test: JB/T9092-99

*Material:

Valve Body: Cast Iron Lining Tetrafluoroethylene, Cast Steel Lining Tetrafluoroethylene

Sphere: Cast Steel Outsourcing Tetrafluoroethylene

Seal Ring: Strength Tetrafluoroethylene, Tetrafluoroethylene

Fiber: Tetrafluoroethylene

*Application:

Chemical Industry, Petroleum Industry, Metallurgy Industry, Medicine Industry.

(For strong corrosive medium such as acid and alkali)

*Specification:

Model
Q41F46-10
Q41F46-16
Q41F46-10C
Q41F46-16C
Working Preasure（MPa）
1.0
1.6
1.0
1.6
Adaptable Temperature（℃）
-10～150
-20～150

* Main Shape and Connection Size:

Nominal Diameter PN1.6(MPa) Size and Flange Size (mm) Standard Figure Weight
DN L D D1 D2 f b Z-Φd H1 Do ㎏
15 130 95 65 45 3 14 4-Φ14 95 140 4
20 140 105 75 55 3 14 4-Φ14 98 150 4.5
25 150 115 85 65 3 16 4-Φ14 113 150 5.5
32 165 135 100 78 3 18 4-Φ18 130 180 7
40 180 145 110 85 3 18 4-Φ18 135 200 9
50 200 160 125 100 3.5 20 4-Φ18 140 220 15
65 220 180 145 120 3.5 20 4-Φ18 145 280 17
80 250 195 160 135 4 22 8-Φ18 205 320 30
100 280 215 180 155 4 24 8-Φ18 230 380 40
125 320 245 210 185 4 26 8-Φ18 252 500 60
150 360 280 240 210 4 28 8-Φ23 283 600 75
200 400 335 295 265 5 30 8-Φ23 325 750 130
250 450 405 355 320 5 34 12-Φ26 370 900 210

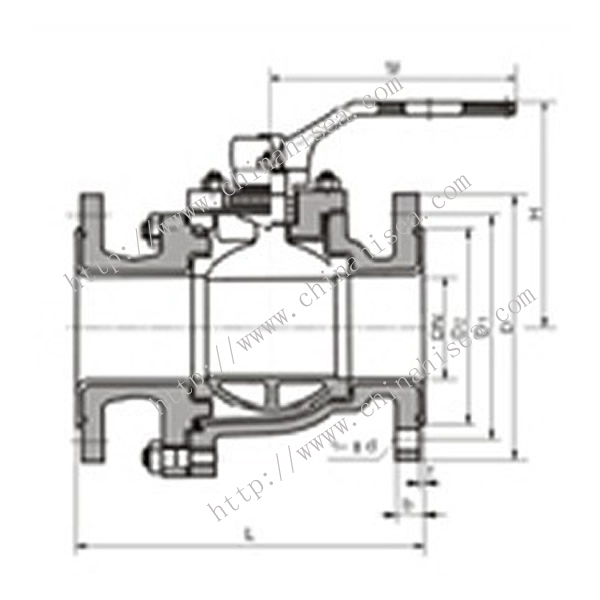

Fluorine Lining Ball Valve Drawing:
