Fixable grille air diffuser

Description:

The square air diffuser have iregular hole to adjust air flow,and it can adjust the air-flow speed by switch,The diffuser can be fixed by rivet,The adjust hole commanly is even number,It mainly applicate in air-conditioning system for air ventilation,It is suittable for marine,other bulidings or anywhere need air distrubution.

The air diffuser can be installed in low pressure enviroment,It is very easy to install and less noise,The material is stainless steel,and The max up angle of adjustable hole is 30 degree,Based as the hole distributed in the whole diffuser,So the air can be adjusted from any direction.

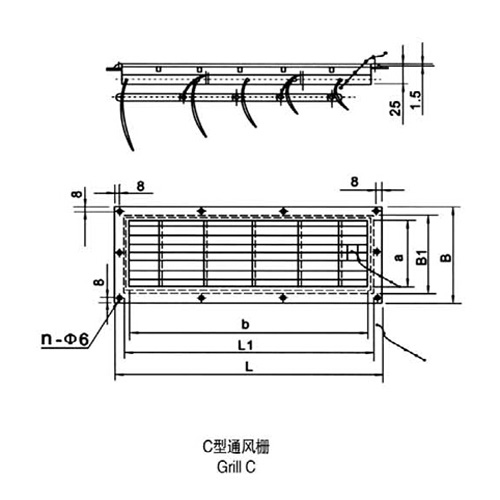

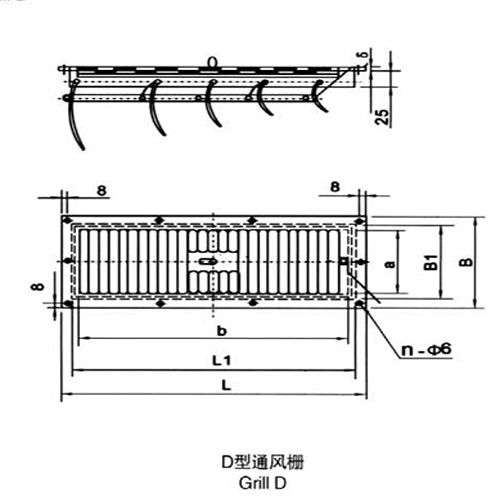

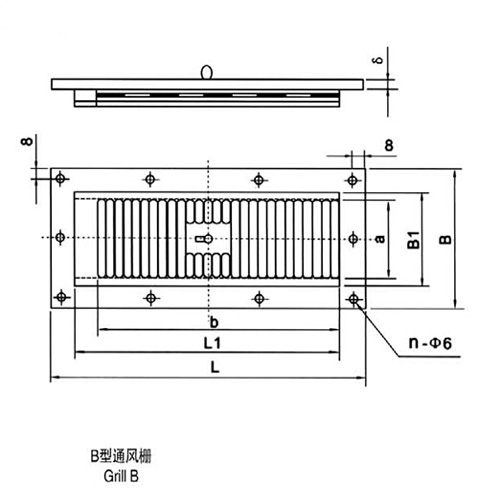

There is three type ventilation air grille to choice,Grill B,C,D.The most diffrent of these type is the construction,Grille C is regular and have vertical and horizontal layer.Grille D is similar as Grill B,But the size is more samller.

Specification:

Construction:Stainless steel.

The max up angle of every hole is 30 degree.

Applicate in cooling,heating air conditioning system.

Optional color avaible.

Fixed by rivet in ceiling or sidewall.

Three type ventilation grille for choice or customized service are available.

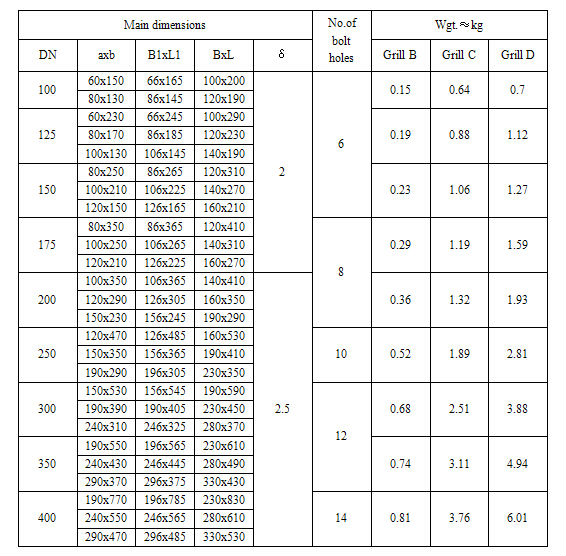

Available size:
