600*360 U Shape Cold Rolled Steel Sheet Pile

Steel Sheet Pile:

Introduction:

Steel sheet pile is a service-proven type familiar to both designers and constructors, which is extensively used for permanent structures, temporary earth-retaining works and temporary cofferdams, etc.
In addition to its rigid structure, its moment of inertia per pile is relatively large, thus allowing repetitive use.
website in a range of sections, with section modulus values ranging from 456 to 4042 cm3/m.

U Sheet Pile have many advantages as following:

1.It combines grest profile depth and has excellent statical properties.2.It is quite suitable for re-use due to the symmetrical form of the single element.
3.It is possible to assemble the piles into pairs in the factory, this way couldimprove the quality and performance of installation.
4.Good corrosion resistanca performance.

Specification:

steel sheet piles

Type

Width

Height

Thickness

Weight

Per pile

Weight

Per wall

Moment

of inertia

Section

modulus

Kg/m

Kg/ m2

Cm4/m

Cm3/m

BMU11-600	600	360	8	61.9	103.2	19897	1105
BMU12-600	600	360	9	69.5	115.8	22213	1234
BMU13-600	600	360	10	76.5	127.5	24491	1361

Optional Steel Grades:

Model	Mechanical Feature
Model	Yield(Mpa)	Tensile(Mpa)	Elongation(%)	Impact Energy
Q235B	235	375-460	38	27
Q345B	≥345	470-630	≥21	≥34
Q345C	≥345	470-630	≥21	≥34
MDB350	≥350	470-630	≥21	≥60
MDB380	≥380	480-640	≥21	≥60
Foreign Model
S355J0	≥355	470-630	≥22	≥27
St52-3	≥355	490-630	≥22	≥27
SM490A	≥325	490-610	≥20
SM490B	≥325	490-610	≥20	≥27
SS490	≥285	490-610	≥19

Application:

Cofferdam(land); Cofferdam(Water); Low embankment; Deep foundation pit; Shallow underground excavation; Light-duty Sea Use; Heavy-duty Sea Use; Underground water quality control. etc.

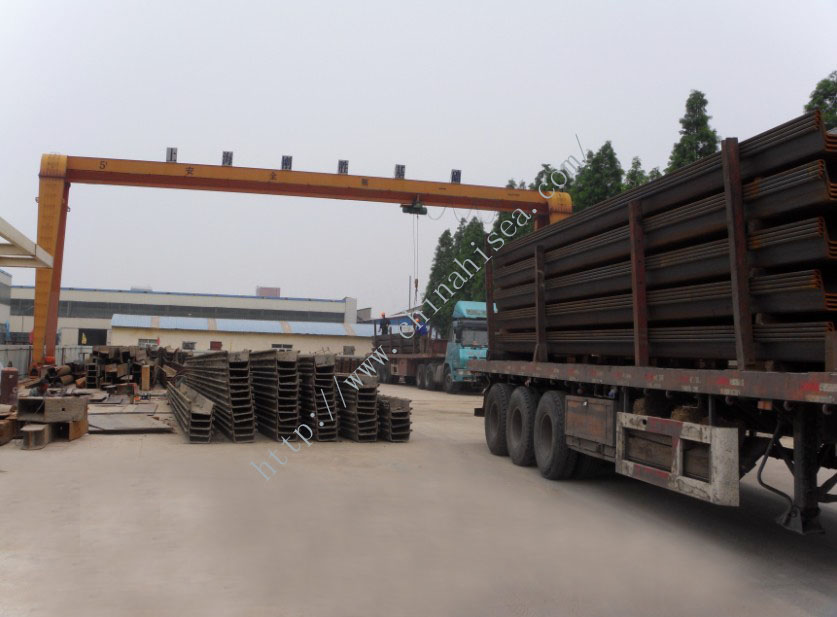

Project Cases:

steel sheet pile
