19mm Stud Link Anchor Chain:
Marine anchor chain and offshore mooring chain are at the core of Hi-sea Marine supplies business and we offer the full range of chain size from 12.5mm to 162mm. Can be supplied in various grade U2,U3 and R3, R3S, R4. MORE MARINE CHAIN PLEASE CLICK HERE.
1.Material: Carbon steel
2.Grade: Grade1, Grade2, Grade3, R3, R4
3.Surface treatment: Mirror polish, Black printed
4.Structure: Welded Chain
5.Certificate: CCS, ABS, LR, GL, NK, RS, DNV, KR, BV, RINA
Test loads for 19mm stud link anchor chain:
Chain diameter |
Grade1 | Grade2 | Grade3 | ORQ | R3 | R4 |
Number of links per 27.5 mtr |
|||||||
inches | mm |
Proof load KN |
Breaking load KN |
Proof load KN |
Breaking load KN |
Proof load KN |
Breaking load KN |
Proof load KN |
Breaking load KN |
Proof load KN |
Breaking load KN |
Proof load KN |
Breaking load KN |
|
3/4 | 19 | 105 | 150 | 150 | 211 | 211 | 301 | 215 | 324 | 227 | 342 | 331 | 420 | 357 |

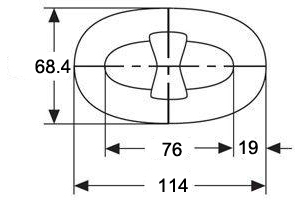

19mm studlink anchor chain dimensioned drawing
