Marine Chain Common Link (C):

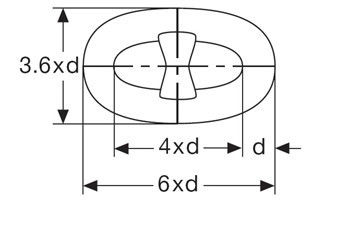

common link.jpg

Marine chain common link

Test loads:

Chain
diameter 		Grade1 Grade2 Grade3
inches mm Proof load
kN 		Breaking
load
kN 		Proof load
kN 		Breaking
load
kN 		Proof load
kN 		Breaking
load
kN
1/2 12.5 46 66 66 92 92 132
9/16 14 58 82 82 116 116 165
5/8 16 76 107 107 150 150 216
11/16 17.5 89 127 127 179 179 256
3/4 19 105 150 150 211 211 301
13/16 20.5 123 175 175 244 244 349
7/8 22 140 200 200 280 280 401
15/16 24 167 237 237 332 332 476
1 26 194 278 278 389 389 556
1 1/8 28 225 321 321 449 449 642
1 3/16 30 257 368 368 514 514 735
1 1/4 32 291 417 417 583 583 833
1 5/16 34 328 468 468 655 655 937
1 7/16 36 366 523 523 732 732 1050
1 1/2 38 406 581 581 812 812 1160
1 9/16 40 448 640 640 896 896 1280
1 5/8 42 492 703 703 981 981 1400
1 3/4 44 538 769 769 1080 1080 1540
1 13/16 46 585 837 837 1170 1170 1680
1 7/8 48 635 908 908 1270 1270 1810
2 50 686 981 981 1370 1370 1960
2 1/16 52 739 1060 1060 1480 1480 2110
2 1/8 54 794 1140 1140 1590 1590 2270
2 3/16 56 851 1220 1220 1710 1710 2430
2 5/16 58 909 1290 1290 1810 1810 2600
2 3/8 60 969 1380 1380 1940 1940 2770
2 7/16 62 1030 1470 1470 2060 2060 2940
2 1/2 64 1100 1560 1560 2190 2190 3130
2 5/8 66 1160 1660 1660 2310 2310 3300
2 11/16 68 1230 1750 1750 2450 2450 3500
2 3/4 70 1290 1840 1840 2580 2580 3690
2 7/8 73 1390 1990 1990 2790 2790 3990
3 76 1500 2150 2150 3010 3010 4300
3 1/16 78 1580 2260 2260 3160 3160 4500
3 3/16 81 1690 2410 2410 3380 3380 4820
3 5/16 84 1800 2580 2580 3610 3610 5160
3 7/16 87 1920 2750 2750 3850 3850 5500
3 9/16 90 2050 2920 2920 4090 4090 5840
3 5/8 92 2130 3040 3040 4260 4260 6080
3 3/4 95 2260 3230 3230 4510 4510 6440
3 13/16 97 2340 3340 3340 4680 4680 6690
3 15/16 100 2470 3530 3530 4940 4940 7060
4 102 2560 3660 3660 5120 5120 7320
4 1/8 105 2700 3850 3850 5390 5390 7700
4 3/16 107 2790 3980 3980 5570 5570 7960
4 3/8 111 2970 4250 4250 5940 5940 8480
4 1/2 114 3110 4440 4440 6230 6230 8890
4 5/8 117 3260 4650 4650 6510 6510 9300
4 3/4 120 3400 4850 4850 6810 6810 9720
4 13/16 122 3500 5000 5000 7000 7000 9990
4 7/8 124 3600 5140 5140 7200 7200 10280
5 127 3750 5350 5350 7490 7490 10710
5 1/8 130 3900 5570 5570 7800 7800 11140
5 3/16 132 4000 5720 5720 8000 8000 11420
5 3/8 137 4260 6080 6080 8510 8510 12160
