400kw marine diesel generator
400kw marine diesel generator General features:
● Coupled with CUMMINS diesel engine and STAMFORD alternator
● 24V DC start motor
● Brushless, Self-excited, IP23, insulation class H alternator
Genset Main Technical Data
3-PH, 50Hz@1500RPM, 380V(Also Can Be Made According To Customers’ Special Requirements)
|
Voltage |
HZ |
Phase |
P.F （COS￠） |
Output (KW) |
|
380V |
50 |
3 |
0.8 |
400 |
● GB/T13032-1991
● ISO9001:2008 Quality Control System
● CCS,BV,ABS,DNV,RRR approved
● Tier II

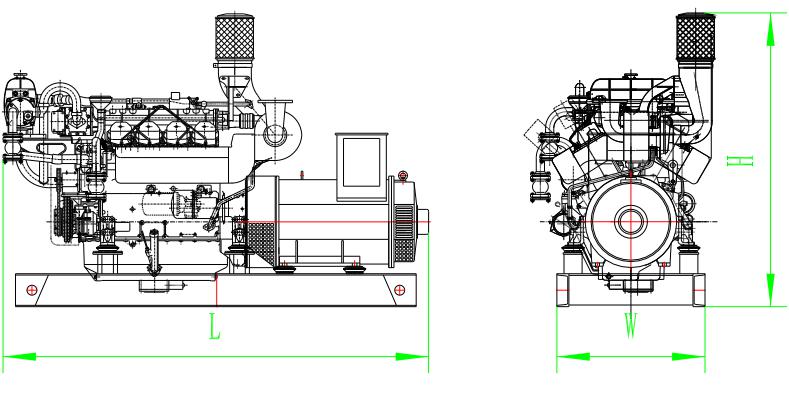

drawing
Diesel Engine Technical Data
|
Number of Cylinders |
6 cylinders in line |
|
Cycle |
4 stroke |
|
Aspiration |
Turbocharged and aftercooled |
|
Bore×Stroke |
159 x159 mm |
|
Displacement |
19.0 L |
|
Compression ratio |
13.9:1 |
|
Prime Power/Speed |
448KW/1500rpm |
|
Speed Governor |
electrical |
|
Cooling System |
By heat exchanger |
|
Fuel Consumption at 100% Load |
204 g/kw.h |
|
Starter Motor |
DC24V, |
Alternator Technical Data
|
Prime power |
440KW |
|
Frequency/speed |
50HZ |
|
Exciter type |
Brushless, Self-excited |
|
Power factor |
0.8 |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
|
Phase / wire |
3 phase 3 wires |
Control System
|
Model |
KCMⅡG |
|
＊engine start/stop ＊engine coolant temperature ＊oil pressure and temperature ＊tachometer ＊coolant temperature alarm ＊oil pressure alarm ＊battery charging indicator ＊generator to be protection from overload and overheat |
|

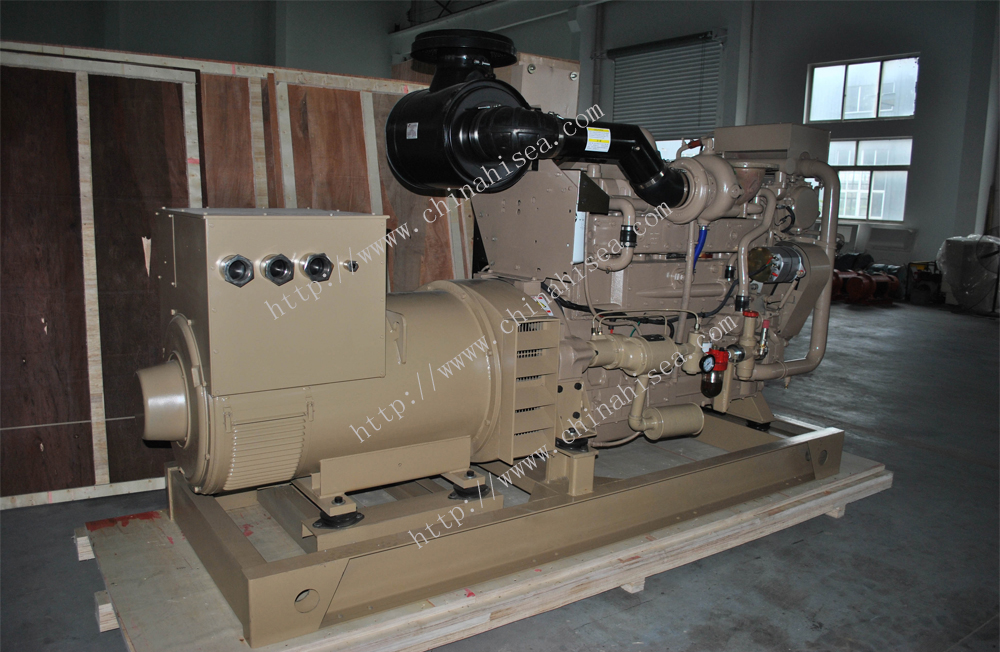

400kw marine diesel generator in factroy
