30kw marine diesel generator

30kw marine diesel generator

30kw marine diesel generator General features:

● Coupled with Cummins diesel engine and STAMFORD alternator

● 24V DC start motor

● Brushless, Self-excited, IP23, insulation class H alternator

Genset Main Technical Data

3-PH, 50Hz@1500RPM, 380/220V (Also Can Be Made According To Customers’ Special Requirements)

Voltage

HZ

Phase

P.F

COS¢)

Output

(KW)

380/220V

50

3

0.8

30


Criterion

● GB/T13032-1991

● ISO9001:2008 Quality Control System

● CCS ,BV.ABS,GL,LR,DNV,RRRapproved

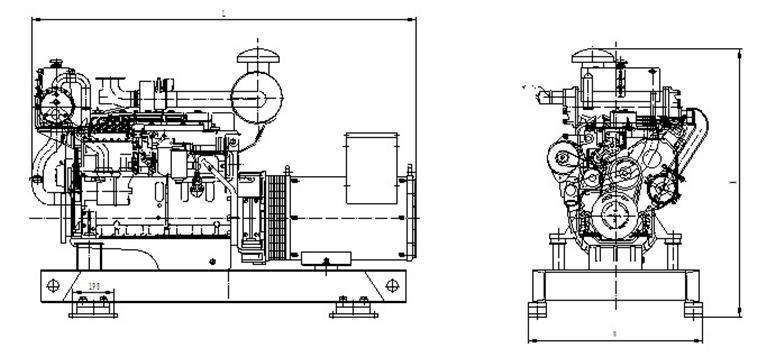

drawing

Diesel Engine Technical Data

Number of Cylinders

4 cylinders in line

Cycle

4 stroke

Aspiration

Turbocharged and aftercooled

Bore×Stroke

102 x120 mm

Displacement

3.9 L

Prime Power / speed

47KW / 1500rpm

Speed Governor

electrical

Cooling System

By heat exchanger

Fuel Consumption at 100% Load

205 g/kw.h

Starter Motor

DC24V,

Alternator Technical Data

Prime power

30KW

Frequency/speed

50HZ/1500rpm

Exciter type

Brushless, Self-excited

Power factor

0.8

Insulation Grade

H

Protection Grade

IP23

Phase / wire

3 phase 3 wires


Control System

Model

FVA401F

*Microcomputer digital control, and reliable work;

*Digital display of parameters of diesel engine, and integration of measuring and monitoring;

*Modularization of functional configuration, and ntegration of product structures;

*Resistance to vibration, humidity, salt mist and high/low temperature;

*Powerful ability to resist interference, convenient installation and use, and high performance-price ratio;

*Remote monitoring of running parameters;

*Automatic zero set of lubricating oil pressure

*Accumulation of running period of diesel engine.

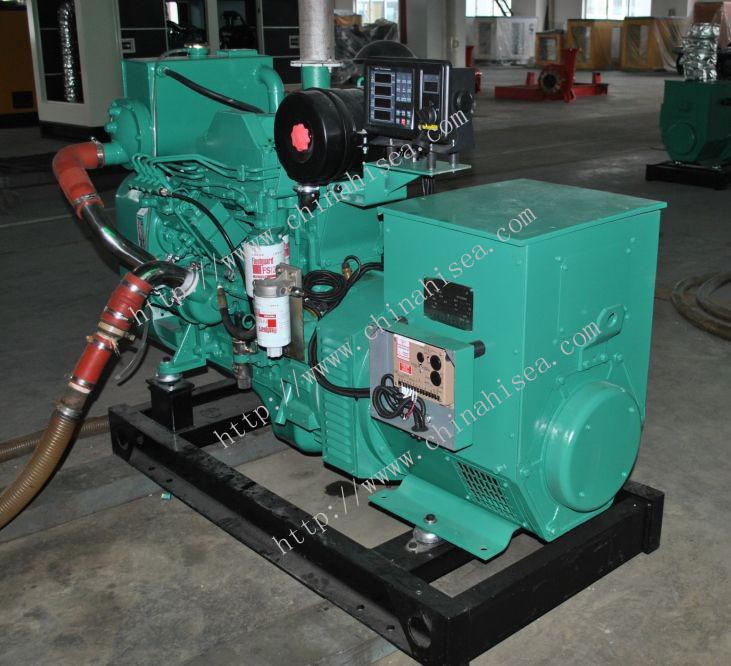

30kw marine diesel generator in factory.jpg

30kw marine diesel generator in factory
