Staghorn type bollard

Staghorn type bollard

Staghorn type bollard

Material: ZG230-450 or HT200, HT250
Serface: Blasting and Epoxy paint

The load rating of bollards is dependent on vessel, current, wind, and wake etc.Capacity is from 50-200Ton.

We can supply series bollards with loading capacity in different material and according to clients' drawing makes all types of bollards on request.

Material of bollards: Cast steel, ductile cast iron or gray cast iron as per various standard.

Class: a. Casting Iron:HT250, FC25, Grade 260,ASTM No.40,UNS F12801.
b. Casting Steel:ZG230-450,SC450,ASTM 450-240, GS-45.

Coating system: Various coating system to protect them from the corrosive environment.

Certificate and 24 months Guarantee by offered.

We can also supply all kinds of dock Bollard comply with your drawing.

Delivery time is about need 40-60days.

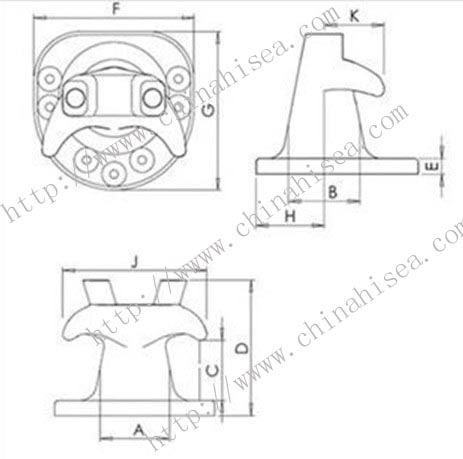

Staghorn type bollard drawing.jpg

Size:

Bolts qty Capacity(Ton) Size
A B C D E F G H J K
5 40 205 205 160 425 50 480 410 165 460 165
5 90 300 300 198 510 70 650 650 280 600 230
7 200 360 360 200 660 100 970 840 356 760 240
6 200 360 360 200 620 80 780 760 356 760 240
7 300 440 440 305 685 85 920 900 380 840 280

Staghorn type bollard.jpg
