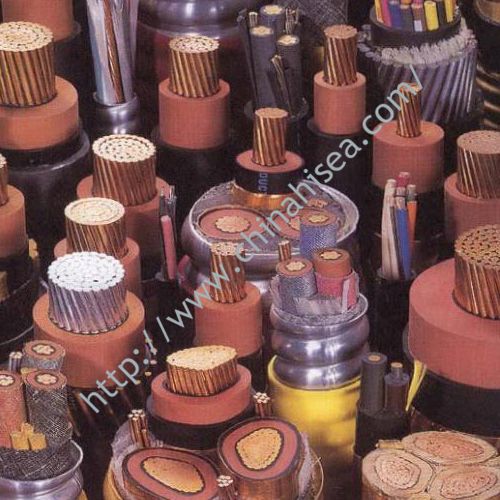

PVC insulated Power Cable

1.Applications

This product is designed for power transmission underground of coal mine

2.Service Conditions

Wire core long-term allowable working temperature of 90 ℃, cable laying temperature not lower than 0 ℃, cable bending radius 15 (D + d) ± 5%.

3.PVC Insulated,PVC Sheath,Copper Conductor

If you feel this is not what you are looking for,please kindly check more power cable here,also you can check more cable here,or you can use the search form on the upper right corner.

PVC insulated Power Cable Model

Model	Product Name
MVV	Mine PVC Insulated PVC Sheathed Cable
MVV22	Mine PVC Insulated Steel Tape Armored PVC Sheathed Cable
MVV32	Mine PVC InsulatedSteel Wire ArmoredPVC Sheathed Cable
MVV42	Mine PVC Insulated Thick Steel Wire ArmoredPVC Sheathed Cable

PVC insulated Power Cable specifications

Model	Core Number	Rated Voltage (KV)
		0.6/1	1.8/3	3.6/6,6/6,6/15
		Nominal Section(mm2)
MVV	3	1.5~300	10~300	10~300
MVV22	3	2.5~300	10~300	10~300
MVV32	3	-	-	16~300
MVV42	3	-	-	16~300
MVV	3+1	4~300	10~300	-
MVV22	3+1	4~300	10~300	-
MVV	4	4~185	4~185	-
MVV22	4	4~185	4~185	-

Technical Requirement:

Conductor Nominal Section(mm2)	Rated Voltage(KV)
	0.6/1	1.8/3	3.6/6	6/6、6/10
	Insulator Nominal Thickness(mm)
1.5	0.8	-	-	-
2.5	0.8	-	-	-
4	1.0	-	-	-
6	1.0	-	-	-
10	1.0	2.2	3.4	4.0
16	1.0	2.2	3.4	4.0
25	1.2	2.2	3.4	4.0
35	1.2	2.2	3.4	4.0
50	1.4	2.2	3.4	4.0
70	1.4	2.2	3.4	4.0
95	1.6	2.2	3.4	4.0
120	1.6	2.2	3.4	4.0
150	1.8	2.2	3.4	4.0
185	2.0	2.2	3.4	4.0
240	2.2	2.2	3.4	4.0
300	2.4	2.4	3.4	4.0
