Normally Closed Pneumatic Diaphragm Valve:

1. Specification:

Body Size: Diameter 8 to Diameter 50

Max Press: 10 Bar, 6 Bar

Max Temperature: 150 Degree

Control Pressure: 4-6 Bar

Diaphram Material: EPDM, FPM, PTFE

Connection Way: Clamp, Welding Flange, Thread

Manufacturing Standard: GB, DIN, ISO, SMS

2. Normally Closed Pneumatic Diaphragm Valve Drawing Picture:

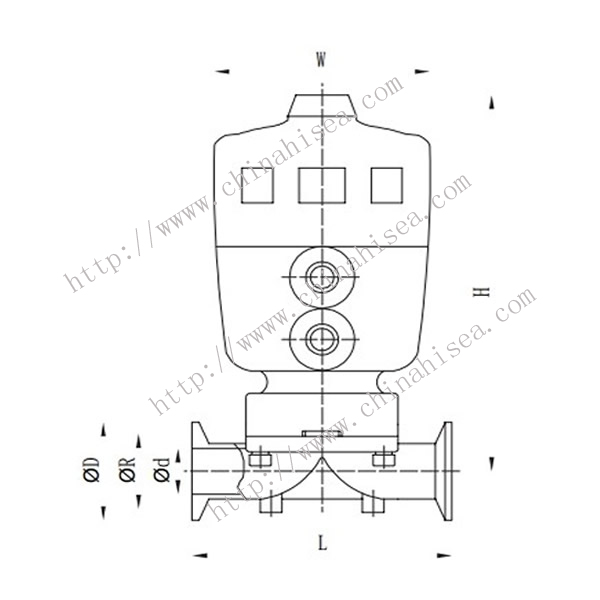

Normally Closed Pneumatic Diaphragm Valve Drawing

3. Normally Closed Pneumatic Diaphragm Valve Size:

Size d R D L W H
1/2 inch 15 43.5 50.5 108 80 145
3/4 inch 19 43.5 50.5
118 100 167
1 inch 22.6 43.5 50.5
130 100 170
1-1/4 inch 28 43.5 50.5
150 100 175
1-1/2 inch 36 43.5 50.5
161 126 225
2 inch 50 56.5 64 172 126 238

4. Normally Closed Pneumatic Diaphragm Valve Sample Picture:

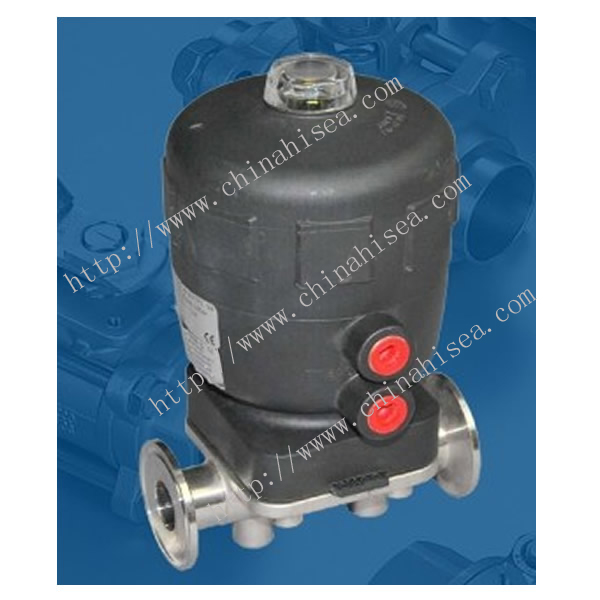

Normally Closed Pneumatic Diaphragm Valve Sample
