J type bollards

J type bollards

J type bollards:

1.Material:CAST STEEL(JIS G7821)
2.Guarantee:2Years
3.Weight:761KG(Include Anchor Bolts)
4.Working Time:15-20 Ys

5.Drawing

J type bollards.jpg

Bolts Qty Capacity(Tonnes) Dimensions(mm)
A B C D E F G H
4 10 180 120 240 190 25 140 180 25
4 15 215 150 290 220 25 160 220 35
4 20 280 200 360 260 25 200 280 35
4 15 290 150 290 220 25 160 220 35
6 50 460 230 460 380 40 244 340 50

Type:

Cast Steel Bollard: 20T, 25T, 30T, 40T, 45T, 50T, 55T, 65T, 75T, 80T, 90T, 100T, 125T, 150T, 200T, 300T
Y Type Bollard: 10T, 15T, 20T, 30T, 50T, 75T, 100T, 125T, 150T, 200T
T Type Bollard: 10T, 15T, 30T, 50T, 75T, 100T, 125T, 150T, 200T
BR Type Bollard: 10T, 15T, 20T, 30T, 50T, 60T, 75T, 80T, 100T, 125T, 150T, 200T, 300T
TEE Type Bollard: 15T, 30T, 50T, 80T, 100T, 150T, 200T
HORN Type Bollard:10T, 15T,20T, 30T, 50T, 80T, 100T, 150T, 200T
KIDNEY Type Bollard: 15T, 30T, 50T, 80T, 100T, 150T, 200T
Towing Bitts STB-66.33 Type A, B, C
Single Bitts: 8" 9" 10" 12"
Cast Steel Double Bitts: DB6" 8" 10" 12" 14" 16"
Cast Steel Double Bitts: DB20T, 30T, 40T, 50T, 60T, 75T, 80T, 100T, 125T, 150T, 175T, 200T

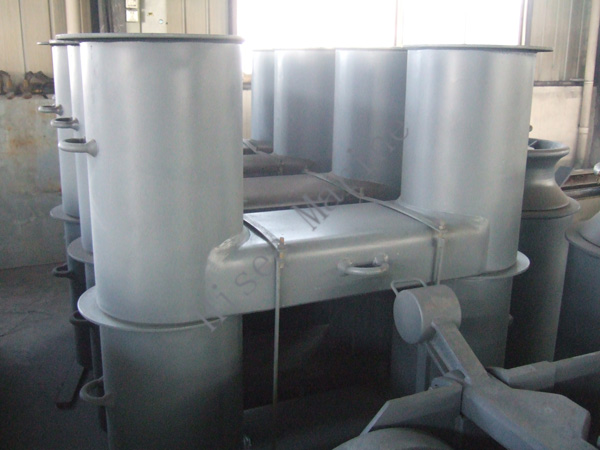

Fabricated Double Bitts: DB138, NS2584, DIN82607, BSMA12, GB/T554-1996ABCDE, JIS F-2001
Cross Bitts JIS F-2804: 150, 200, 250, 300, 350MM
