Welding Studs

Welding Studs:

1. Brief Introduction:

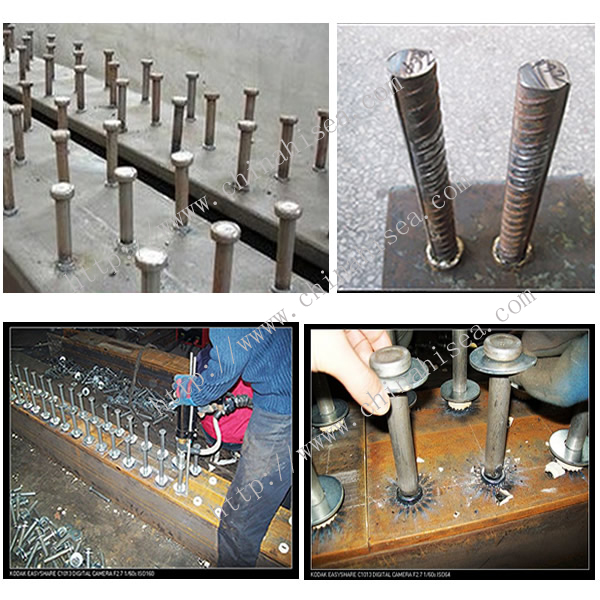

Stud welding means the direct welding metal studs or similar metal fasteners (studs, anchor parts) to the work piece (the base material, generally the plate), featuring higher speed and strength, smaller heat-affected zone and less pollution, which is generally used in various aspects as the automotive, boiler, construction steel structure and ship building.

Threaded fasteners, common pins, open pins and studs can be used in this method with nonferrous metals as low carbon steel, low alloy steel stainless steel and copper.

Welding current (Ampere) can be selected from the range of 50—100 times of the stud diameter.

That is I=（50-100）d（A）.

Welding time (Millisecond) can be selected from the range of 50—100 times of the stud diameter.

That is I=（50-150）d（ms）.

The welding reference values of construction steel stud we recommend are from our past experience, and the specific requirement in the work shall be determined by the experiment in the actual conditions. Besides, the following experience data is for the stud of low carbon steel, thus other process experiments shall be made for other materials.

Model type	Power current		Time
Model type	Light beam	Contour plate penatration welding	Light beam	Contour plate penatration welding
ф10	600A	——	1.20S	——
ф12	800A	——	1.12S	——
ф13	900A	700A	1.00S	1.40S
ф16	1300A	1000A	1.20S	1.70S
ф19	1600A	1400A	1.30S	1.90S
ф22	1900A	1700A	1.40S	2.00S

2. Specification:

Types	RSN7—1600	RSN7—2000	RSN7—2500
Welding scope	Φ4mm—Φ20mm	Φ4mm—Φ24mm	Φ4mm—Φ28mm
Welding current	200A—1600A	300A—2000A	300A—2500A
Welding time	0.1S—3.0S	0.1S—3.0S	0.1S—3.0S
Welding speed	Φ20 10/m	Φ22 10/m	Φ28 10/m
Input power	AC 3~280V±440V	AC 3~280V±440V	AC 3~280V±440V
Rating capacity	50KW	60KW	80KW
Power switch	100A	125A	160A
Protection level	Ip23	Ip23	Ip23
Cooling model	Air cooling	Air cooling	Air cooling
Dimensions (L,W,H)	780mm×360mm× 588mm	880mm×460mm× 800mm	880mm×460mm× 800mm
Weight	80kg	135kg	145kg
