Universal Plate Clamp
Universal Plate Clamp
| Product Name: | Universal Plate Clamp | ||||||||
| Material： | steel | ||||||||
| Spec: |
• Desinged for the safe handling of plate at various angles • The pivoting shackle ensures adequately gripping pressure to hold the plate safely in every positon • Hardened steel jaws for positive gripping and locking mechanism • Suitable for all structural steel up to HRC30/Brinell300 • 150% overload tested • Manufactured according to EC Council Directive 2006/42/EC Machinery，American Standard ANSI/ASME B30.20 |
||||||||
| Application: | For the safe handling of plate at various angles | ||||||||

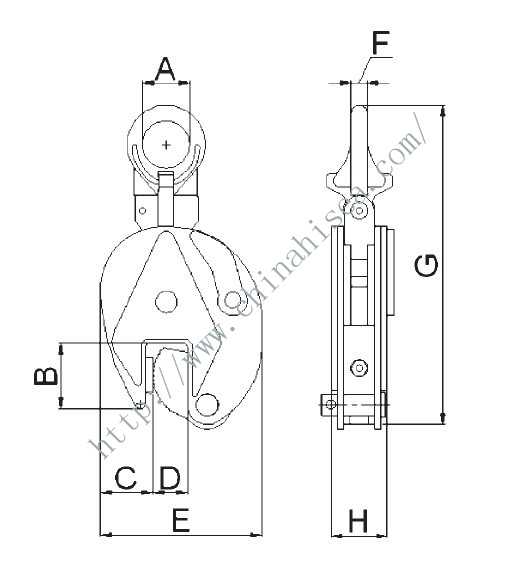

Technical Drawing For Universal Plate Clamp:
Parameters For Universal Plate Clamp:
| Model | Rated capacity | Proof test load | Jaw opening | Dimensions | Net Weight | |||||||
| mm | ||||||||||||
| T | KN | mm | A | B | C | D | E | F | G | H | kg | |
| HPZ05 | 0.5 | 7.35 | 0-15 | 30 | 44 | 35 | 0-17 | 103 | 10 | 212 | 35 | 1.9 |
| HPZ10 | 1.0 | 14.7 | 0-20 | 48 | 63 | 51 | 0-22 | 138 | 12 | 295 | 51 | 4.8 |
| HPZ20 | 2.0 | 29.4 | 0-25 | 70 | 76 | 56 | 0-27 | 164 | 16 | 370 | 52 | 6.5 |
| HPZ30 | 3.0 | 44.1 | 0-30 | 75 | 85 | 59 | 0-32 | 193 | 20 | 418 | 78 | 14.8 |
| HPZ50 | 5.0 | 73.5 | 0-50 | 80 | 90 | 65 | 0-52 | 240 | 22 | 450 | 88 | 22.5 |
