Three Way Ball Valve
Three Way Ball Valve:
1. Product Description:
(1). Model: Q45F, Q44F
(2). Diameter: DN15-DN200
(3). Pressure: 1.0-4.0 Mpa
(4). Material: Cast Iron, Cast Steel, Stainless Steel
(5). Media: Water, Gas, Oil
(6). Suitable Temperature: -29 degree to 150 degree
(7). Connection: Flange, Thread, welding end
(8). Application: Petroleum, Chemical industry, electricity industry
(9). Through Term: Three Way
2. Main Material:
(1). Valve Body: Q45F-16C, -25P, -40R
(2). Sphere: Ci Ni Ti Steel
(3). Valve Stem: Ci Ni Ti Steel
(4). Seal Ring: PTFE
(5). Wrench: Cast Steel
3. Main Size and Connection Size (mm):
|
Model
|
Nominal Diameter DN
|
Size（MM）
|
||||
|
L
|
D
|
D1
|
H
|
z-ød
|
||
|
Q44F-16C/P
Q45F-16R/L |
15
|
140
|
95
|
65
|
103
|
14-4
|
|
20
|
160
|
105
|
75
|
112
|
14-4
|
|
|
25
|
180
|
115
|
85
|
123
|
14-4
|
|
|
32
|
200
|
135
|
100
|
144
|
18-4
|
|
|
40
|
220
|
145
|
110
|
152
|
18-4
|
|
|
50
|
240
|
160
|
125
|
182
|
18-4
|
|
|
65
|
260
|
180
|
145
|
193
|
18-4
|
|
|
80
|
280
|
195
|
160
|
217
|
18-8
|
|
|
100
|
320
|
215
|
180
|
245
|
18-8
|
|
|
125
|
360
|
245
|
210
|
282
|
18-8
|
|
|
150
|
440
|
280
|
240
|
319
|
23-8
|
|
|
Q44F-25C/P
Q45F-25R/L |
15
|
115
|
95
|
65
|
14-4
|
|
|
20
|
145
|
105
|
75
|
14-4
|
||
|
25
|
160
|
115
|
85
|
14-4
|
||
|
32
|
200
|
135
|
100
|
18-4
|
||
|
40
|
220
|
145
|
110
|
18-4
|
||
|
50
|
240
|
160
|
125
|
18-4
|
||
|
65
|
260
|
180
|
145
|
18-8
|
||
|
80
|
280
|
195
|
160
|
18-8
|
||
|
100
|
320
|
230
|
190
|
23-8
|
||
|
125
|
360
|
270
|
220
|
25-8
|
||
|
150
|
440
|
300
|
250
|
25-8
|
||
4. Three Way Ball Valve Pressure Test Picture Show:
5. Three Way Ball Valve Working Theory Picture:

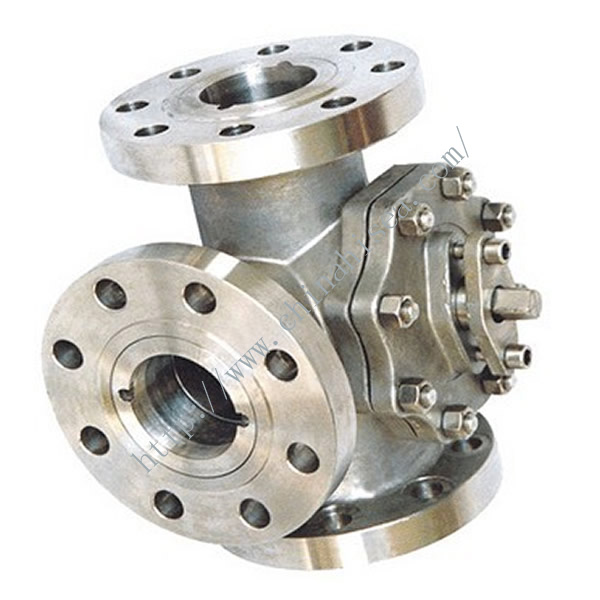

6. Three Way Ball Valve Sample Picture:
