SFOI fire resistant instrumentation cable

SFOI fire resistant instrumentation cable

SFOI fire resistant instrumentation cable application

This cable is designed for telephone & instrument circuits up to 150/250V.Suitable for use in commercial marine applications.Marine applications including shipwiring and the petrochemical and process control industries. For instrumentation and communication systems

SFOI fire resistant instrumentation cable standards

Design Guide : IEC 60092-350, 376

Insulation Material : IEC 60092-351

Sheath Material : IEC 60092-359

Flammability : IEC 60332-1 & IEC 60332-3 Category A

Fire Resistance : IEC 60331 (750 or 1000 )

Halogen Content : IEC 60754-1,2, 0.5%(Max.)

Smoke Emission : IEC 61034-1,2, 60%(Min.)

SFOI fire resistant instrumentation cable Type Approvals

ABS, Bureau Veritas and Lloyd's Register

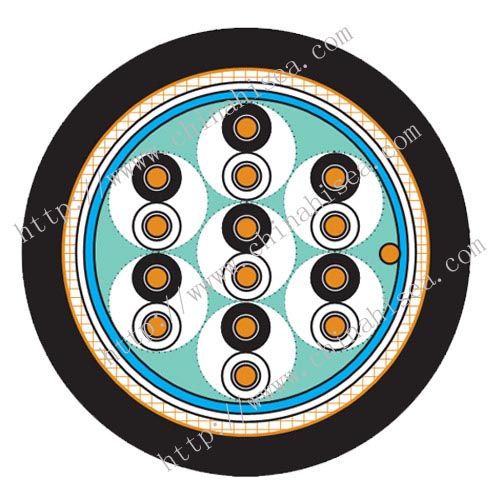

SFOI fire resistant instrumentation cable construction

Classification	Code	Construction detail
Conductor		Stranded plain annealed copper wires as per IEC 60228, Class 2
Fire resisting layer	S	Mica/glass tape
Insulation		XLPE as per IEC 60092-351
Twisting		Two/Three Insulated cores shall be twisted together to form a pair/triad
Cabling		- Screened pairs/triads shall be cabled - Flame retardant & non-hygroscopic fillers may be used - Suitable tape(s) may be applied on the cabled core - A Filler may be applied to obtain a circular Cable
Collective screen	(c)	- Screened by AL/PS tape with tinned copper drain wire - A suitable tape may be applied on the collective screen - In case of 250V BI(i)cable, collective screen is omitted - SHF1 as per IEC 60092-359
Inner Covering	F	Non-hygroscopic material
Armor	O	- Braid of plain annealed copper wire - Coverage density : Min. 90%
Sheath	I	- Sheath color : Black - Colored insulation plus Arabic number printing on the insulation
Core identification		Pair : White, Black Triad : White, Red, Black

Note.
The other color of sheath and insulation may be applicable when purchaser required.
Stranded tinned annealed copper wire as per IEC 60228, Class 2 may be applicable when purchaser required.

SFOI fire resistant instrumentation cable specification

Cores: 1P, 2P,3P,4P,5P,7P,10P,12P,14P,16P,19P,20P, 24P, 30P (P:Pair)

1T, 2T,3T,4T,5T,7T,10T,12T,14T,16T,19T,20T, 24T, 30T (Triad)

Size (sqmm): 0.75, 1, 1.5, 2.5

SFOI fire resistant instrumentation cable show

Cable Sample

Workshop

Testing Lab
