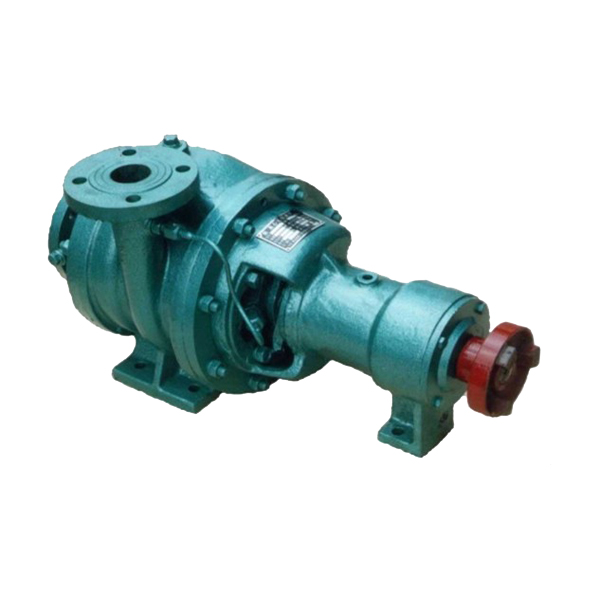

The CWF series marine horizontal water sealing pump:

The CWF series marine horizontal water sealing pump is suitable to the protection pump on dredger where it is used to seal the water. It is also suitable to the bilge pump, cooling pump and fire pump on boats. It may be used to deliver the sea water, fresh water or other non-corrosive liquid medium lower than 70℃.

The pump rotates anticlockwise viewed from motor.

Main technical parameter

Parameters in case of power supply frequency of 50Hz 2900r/min, please inform us if you required 60 Hz.

Type (50Hz 3φ 380V) Main technical parameter Motor type & powerkW
Capacitym3/h Headm Speedr/min NPSHrm Shaft power kW
50CWF-70-J 15 70 2900 3.2 6.4 Y132S2-2H 7.5
65CWF-80-2D 25 80 2900 3.2 11.5 Y160M2-2H 15
65CWF-100-2D 25 100 2900 3.2 15.8 Y160L-2H 18.5
65CWF-60-J 40 60 2900 3.5 9.6 Y160M2-2H 15
65CWF-70-2D 40 70 2900 3.4 11.73 Y160M2-2H 15
65CWF-105-2D 40 100 2900 3.5 23.2 Y200L1-2H 30
65CWF-120-2D 40 120 2900 3.5 29.5 Y200L2-2H 37
80CWF-50-J 50 50 2900 3.5 10.1 Y160M2-2H 15
80CWF-65-J 50 65 2900 3.5 14.1 Y160L-2H 18.5
80CWF-70-2D 50 70 2900 3.5 15.9 Y160L-2H 18.5
80CWF-80-2D 50 80 2900 3.5 25.3 Y200L1-2H 30
80CWF-120-2-D 50 120 2900 3.5 36.2 Y225M-2H 45
80CWF-40-2-J 60 40 2900 4 10.5 Y160M2-2H 15
80CWF-60-J 60 60 2900 4 14.1 Y160L-2H 18.5
80CWF-80-2D 60 80 2900 4 20.1 Y180M-2H 22
80CWF-120-2D 60 120 2900 4 41 Y225M-2H 45
100CWF-50-J 80 50 2900 4.2 14.6 Y160L-2H 18.5
100CWF-60-J 80 60 2900 4.2 17.8 Y180M-2H 22
100CWF-80-2D 80 80 2900 4.2 33.5 Y200L2-2H 37
100CWF-120-2D 80 120 2900 4.2 54.5 Y280S-2H 75
100CWF-140-2J 80 140 2900 4.2 66.9 Y280S-2H 75
100CWF-3.5 50 120 2900 4.2 31.5 Y200L2-2H 37
