Marine Thin Fan Coil

Application:

CFP-BGM,WAB,ZH,Fan Coil has new design,beatiful apprearance,simple installation,convenient operation,low noise,small volume and save energy etc.which is suitable for medium and small sized navy,such and suppers smuggling boat,patrol boat and luxurious yacht etc.

CFP-BGM wall mounted fan coil is mirco computer procedure control and red ray remote control,The operation is simple and convenient,uses imported oil-free roll bearing,equiping with al-alloy impeller and reduce the nosie largely.

CFP-WAB super thin horizontal hidden fan coil uses Al-alloy impeller,Oil-free high precision bearing 3 speed low noise special motor,which make fan noise low and the nuit dimension small.

CFP-ZH combina fan coil is built in 3 way solenoid valve,for optional cooling or heating,high efficient fan can connect the duct to supply the air,Compact design make unit mount in locker,seat or other closet,The conditioned air wil be sent to supply air grill at high place by flexiable duct.Condensate water pan,fan cavity and metal surface flowing by air should be placed with thermal insulation to reduce the noise and condensate water.

Dimensions:

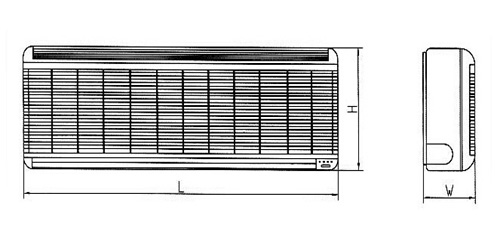

CFP-BGW：

型号 Type			CFP-7.0 BGW	CFP-10 BGW	CFP-12 BGW	CFP-16 BGW	CFP-24 BGW
制冷量 Cooling capacity		kw	2	3	3.5	4.7	7
制冷量 Cooling capacity		Btu/hr	7000	10000	12000	16000	24000
制热量 Heating capacity		kw	2.2	3.3	3.85	5.17	7.7
制热量 Heating capacity		Btu/hr	7500	11000	13000	17000	26000
风量 Air flow	高 High m³/h		350	500	630	800	1000
	中 Medium m³/h		300	400	520	720	880
	低 Low m³/h		220	280	400	605	700
水量 Water flow m³/h			450	510	630	790	880
进出水口径 Dia of water inlet/outlet			RC 1/2螺纹或DN 15 软管连接（RC 1/2 thread or DN 15 hose）
电制 Power supply			220V 50HZ 1φ
功率 Totel Power W			30	40	40	70	135
电流 Current A			0.35	0.4	0.4	0.9	1.1
外形尺寸 Dim	长度L mm		890	890	1030	1080	1080
	宽度W mm		180	180	185	215	215
	高度H mm		290	290	290	330	330
重量 Weight Kg			15	17	19	21	28

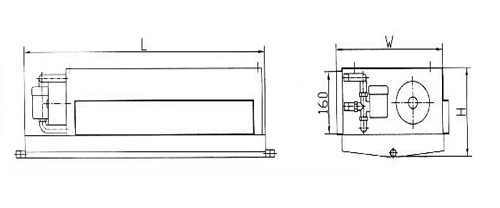

CFP-WAB：

型号 Type			CFP-7.0 WAB	CFP-10 WAB	CFP-12 WAB	CFP-16 WAB	CFP-24 WAB	CFP-30 WAB
制冷量 Cooling capacity		kw	2	3	3.5	4.7	7	8.8
制冷量 Cooling capacity		Btu/hr	7000	10000	12000	16000	24000	30000
制热量 Heating capacity		kw	2.2	3.3	3.85	5.17	7.7	9.7
制热量 Heating capacity		Btu/hr	7500	11000	13000	17600	26000	33000
风量 Air flow	高 High m³/h		350	500	630	800	1400	1600
	中 Medium m³/h		300	400	505	640	1140	1280
	低 Low m³/h		210	300	380	480	890	980
水量 Water flow m³/h			370	520	650	830	1400	1550
进出水口径 Dia of water inlet/outlet			RC 1/2螺纹或DN 15 软管连接（RC 1/2 thread or DN 15 hose）			RC 3/4螺纹或DN 20 软管连接（RC 3/4 thread or DN 20 hose）
电制 Power supply			220V 50HZ 1φ
功率 Totel Power W			30	40	40	70	135	145
电流 Current A			0.35	0.4	0.4	0.9	1.1	1.2
外形尺寸 Dim	长度L mm		650	800	990	1090	1150	1360
	宽度W mm		350	350	.350	350	350	350
	高度H mm		230	230	230	230	230	230
重量 Weight Kg			15	17	19	21	28	32

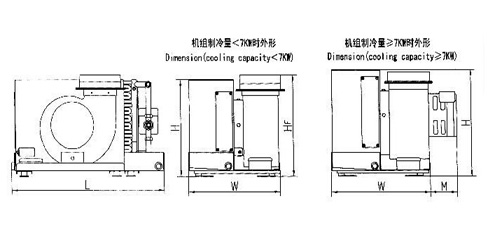

CFP-ZH：

型号 Type			CFP-4.5 ZH	CFP-7.0 ZH	CFP-9.0 ZH	CFP-12 ZH	CFP-16 ZH	CFP-18 ZH	CFP-24 ZH
制冷量 Cooling capacity		kw	1.32	2	2.6	3.5	4.7	5.3	7
制冷量 Cooling capacity		Btu/hr	4500	7000	9000	12000	16000	18000	24000
制热量 Heating capacity		kw	1.45	2.2	2.86	3.85	5.17	5.85	7.7
制热量 Heating capacity		Btu/hr	5000	7500	9800	13000	17600	20000	26000
风量 Air flow	高 High m³/h		340	340	510	680	800	900	1190
风量 Air flow	低 Low m³/h		200	200	300	400	480	530	700
水量 Water flow m³/h			0.3	0.4	0.52	0.7	0.9	1.02	1.36
进出水口径 Dia of water inlet/outlet			RC 1/2螺纹或DN 15 软管连接（RC 1/2 thread or DN 15 hose）
电制 Power supply			220V 50HZ 1φ
功率 Totel Power W			150	150	200	200	220	220	250
电流 Current A			1.2	1.2	1.7	1.7	2.0	2.0	2.4
外形尺寸 Dim	长度L mm		485	485	545	545	545	585	600
	长度L1 mm		328	328	328	328	335	345	400
	宽度W mm		0	0	0	0	0	0	96
	高度H mm		335	335	335	360	410	410	460
	高度Hp mm		364	364	.364	364	401	401	450
重量 Weight Kg			10	13	16	17	18.5	23	28
