Hydraulically Dredge Gate Valve
Hydraulically Gate Valve main features:
1.The gate valves are designed to cope with highly abrasive slurries and to open and close smoothly in severe operational environments.2.A polished knife gate is installed,made out of stainless steel.
3.Reinforced rubber ring seals are installed for a perfect seal. The rubber seal provides an efficient and free passage of slurry mixture in the pipeline when the slide is open.
4.The gate valves are designed to be maintenance friendly.
5.The gate valves are equipped with electric open/closed sensors.
6.Special dimensional requirements such as mounting dimensions of the gate valve can be met upon request.
7.The proven design and technology are widely used in the dredging industry.
Structure of Hydraulically Dredge Gate Valve
Technical specifications
|
Nominal Diameter |
Structure size |
Flange connection |
Working pressure |
|||||
|
DN(mm) |
H(mm) |
H1(mm) |
D(mm) |
B(mm) |
D(mm) |
D1(mm) |
n-Th |
Mpa |
|
450 |
2290 |
382 |
230 |
620 |
615 |
565 |
16-M24 |
1.6 |
|
500 |
2595 |
434 |
258 |
680 |
670 |
620 |
20-M24 |
1.6 |
|
550 |
2740 |
456 |
258 |
730 |
730 |
675 |
20-M24 |
1.6 |
|
600 |
2950 |
496 |
278 |
780 |
780 |
725 |
20-M27 |
1.6 |
|
650 |
3190 |
526 |
278 |
830 |
835 |
780 |
24-M27 |
1.6 |
|
800 |
3775 |
625 |
346 |
1010 |
1015 |
950 |
24-M30 |
1.6 |
|
1000 |
4615 |
775 |
434 |
1250 |
1230 |
1160 |
28-M33 |
1.6 |
|
1400 |
6045 |
965 |
478 |
1650 |
1675 |
1590 |
36-M42 |
1.6 |
|
450 |
2260 |
405 |
387 |
620 |
670 |
600 |
16-M27 |
2.5 |
|
650 |
3075 |
525 |
487 |
830 |
895 |
820 |
20-M33 |
2.5 |
|
850 |
3855 |
660 |
598 |
1060 |
1130 |
1040 |
24-M36 |
2.5 |
|
1000 |
4810 |
800 |
748 |
1250 |
1295 |
1210 |
28-M42 |
2.5 |
|
1100 |
5135 |
840 |
748 |
1350 |
1420 |
1320 |
32-M42 |
2.5 |
|
1200 |
5250 |
880 |
819 |
1450 |
1530 |
1420 |
32-M42 |
2.5 |
|
1300 |
5735 |
965 |
819 |
1550 |
1645 |
1530 |
36-M42 |
2.5 |
|
1400 |
6075 |
1025 |
819 |
1650 |
1755 |
1640 |
36-M48 |
2.5 |
NOTE：All dimensions are indicative values only. We can supply the Gate Valves according to your requirements.

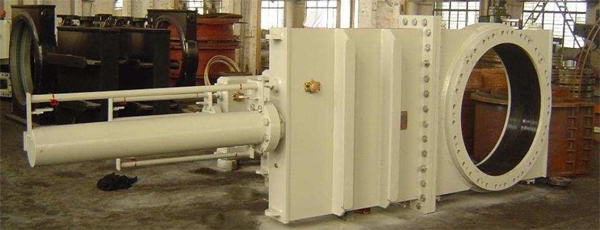

Hydraulically Dredge Gate Valve in factory
