Product Name: G-213 / S-213 Round Pin Anchor Shackles
Material： forged alloy steel
Spec: • Capacities 1/2 through 35 metric tons.
• Forged - Quenched and Tempered, with alloy pins.
• Working Load Limit permanently shown on every shackle.
• Hot Dip galvanized or Self Colored.
• Fatigue rated.
• Shackles can be furnished proof tested with certificates to designated
standards, such as ABS, DNV, Lloyds, or other certification. Charges for
proof testing and certification available when requested at the time
of order.
• Shackles are Quenched and Tempered and can meet DNV impact
requirements of 42 joules (31 ft-Ibs.) at -20 degree C (-4 degree F).

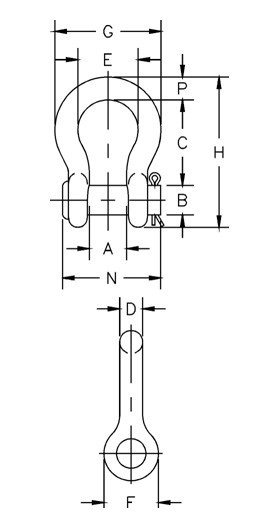

Technical Drawing For G-213 / S-213 Round Pin Anchor Shackles:

G-213 S-213 Round Pin Anchor Shackles-drawing.jpg

Technical Parameters For G-213 / S-213 Round Pin Anchor Shackles:

Nominal Size (in.) Working Load Limit (t)* Stock Weight
Each
(kg) 		Dimensions Tolerance
No. (mm) + / -
G-213 S-213 A B C D E F G H N P C A
1/4 1/2 1018017 1018026 0.06 11.9 7.85 28.7 6.35 19.8 15.5 32.5 46.7 34 6.35 1.5 1.5
5/16 3/4 1018035 1018044 0.08 13.5 9.65 31 7.85 21.3 19.1 37.3 53 40.4 7.85 1.5 1.5
3/8 1 1018053 1018062 0.13 16.8 11.2 36.6 9.65 26.2 23.1 45.2 63 47.2 9.65 3.3 1.5
7/16 1-1/2 1018071 1018080 0.17 19.1 12.7 42.9 11.2 29.5 26.9 51.5 74 54 11.2 3.3 1.5
1/2 2 1018099 1018106 0.32 20.6 16 47.8 12.7 33.3 30.2 58.5 83.5 60.5 12.7 3.3 1.5
5/8 3-1/4 1018115 1018124 0.68 26.9 19.1 60.5 16 42.9 38.1 74.5 106 74 17.5 3.3 1.5
3/4 4-3/4 1018133 1018142 1.05 31.8 22.4 71.5 19.1 51 46 89 126 87 20.6 6.35 1.5
7/8 6-1/2 1018151 1018160 1.58 36.6 25.4 84 22.4 58 53 102 148 96.5 24.6 6.35 1.5
1 8-1/2 1018179 1018188 2.27 42.9 28.7 95.5 25.4 68.5 60.5 119 167 115 26.9 6.35 1.5
1-1/8 9-1/2 1018197 1018204 3.16 46 31.8 108 28.7 74 68.5 131 190 130 31.8 6.35 1.5
1-1/4 12 1018213 1018222 4.42 51.5 35.1 119 32.8 82.5 76 146 210 140 35.1 6.35 1.5
1-3/8 13-1/2 1018231 1018240 6.01 57 38.1 133 36.1 92 84 162 233 156 38.1 6.35 3.3
1-1/2 17 1018259 1018268 7.82 60.5 41.4 146 39.1 98.5 92 175 254 165 41.1 6.35 3.3
1-3/4 25 1018277 1018286 13.4 73 51 178 46.7 127 106 225 313 197 57 6.35 3.3
2 35 1018295 1018302 20.8 82.5 57 197 53 146 122 253 348 222 61 6.35 3.3

NOTE: Maximum Proof Load is 2.0 times the Working Load Limit. Minimum Ultimate Strength is 6 times the Working Load Limit.
