Float Collar

Float Collar

Float Collar

Features of Float Collar:

  • High strength and high pressure resistance;
  • Withstanding circulation for a long period;
  • Saving time and labour with automatic fill-up;
  • Easy drilling with PDC and roller bits;
  • Cutting cementing plugs fast with anti-rotation groove specially designed;
  • Economical costs;

Specifications of Float Collar:

Type

Casing Size

OD (mm)

Length (mm)

Connection Thread

FG-178L

7”

194.5

586

7” LCSG

FG-178B

7” BCSG

FG-245L

9 5/8”

270.0

720

9 5/8” LCSG

FG-245B

9 5/8” BCSG

FG-339L

13 3/8”

365.0

720

13 3/8” LCSG

FG-339B

13 3/8” BCSG

Pictures of Float Collar:

Float Collars.jpg

Float Collars

Float Collar - Structure CGI.jpg

Float Collar - Structure

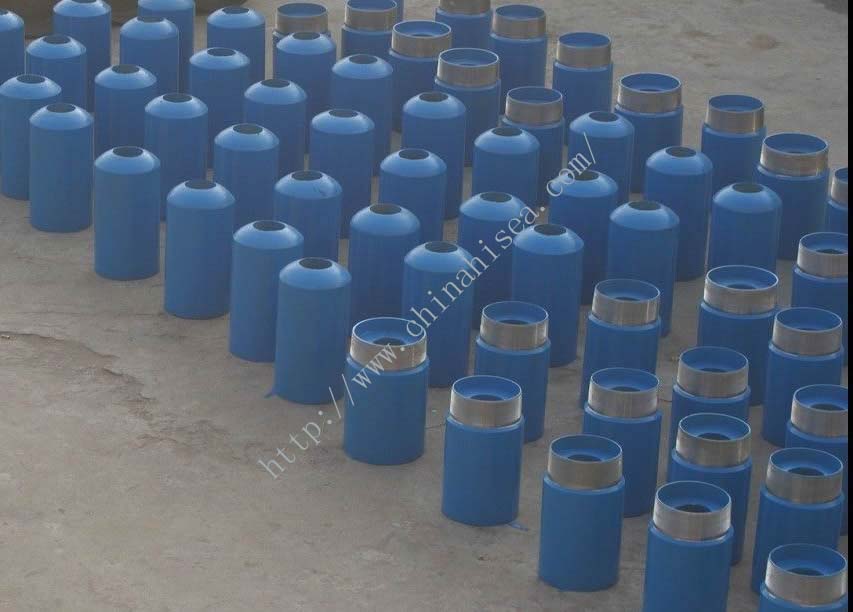

Float Collar in Factory.jpg

Float Collars in Factory
