EN1092-1 PN6 Carbon Steel Flanges

EN1092-1 PN6 Carbon Steel Flanges introduction

EN1092-1 PN6 Carbon Steel Flanges are indicated with 8 types here: slip-on plate flange, loose plate flange with weld-on plate collar, loose plate flange with stub ends, loose plate flange with weld-neck collar, blind/blank flange, weld-neck flange, hubbed slip-on flange, integral flange. These EN1092-1 PN6 Carbon Steel Flanges are under nominal pressure of 0.6Mpa, according to European Standard(EN1092-1 PN6).

EN1092-1 PN6 Carbon Steel Flangess specification

Type	Carbon steel flanges: slip-on plate flange, loose plate flange with weld-on plate collar, loose plate flange with stub ends, loose plate flange with weld-neck collar, blind/blank flange, weld-neck flange, hubbed slip-on flange, integral flange.
Standard	EN1092-1
Nominal diameter	DN10-3500
Nominal pressure	PN6; 0.6Mpa
Steel processing	Smelted
Certificate	ABS, CCS, DNV, GL, BV, LR, KR, etc.
Application	Petroleum, chemical, food industry, marine, automobile industry, rail building, general engineering, etc.

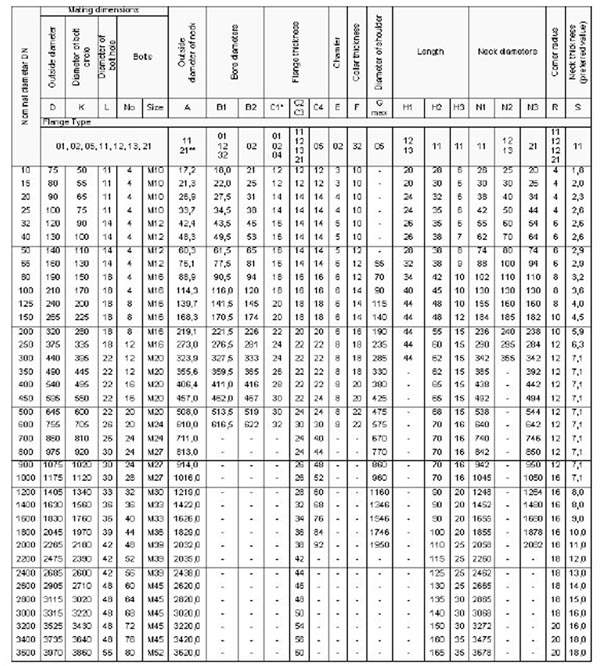

EN1092-1 PN6 Carbon Steel Flanges dimensions (refer to the catalogue for more)

EN1092-1 PN6 Carbon Steel Flanges show

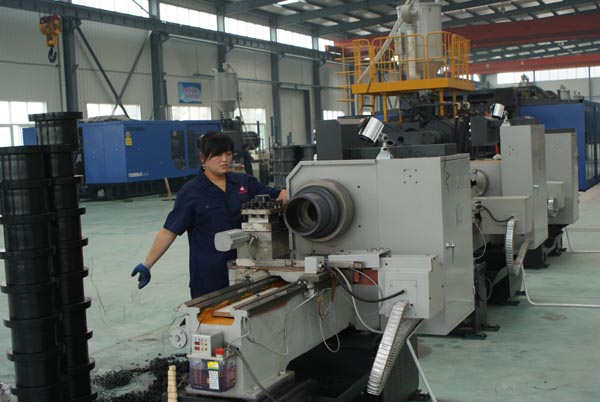

EN1092-1 PN6 Carbon Steel Flanges processing

EN1092-1 PN6 Carbon Steel Flanges workshop

EN1092-1 PN6 Carbon Steel Flanges business

Welcome win-win business all over the world. Feel free to contact us for EN1092-1 PN6 Carbon Steel Flanges, enquiries or drawings for special designs. All informations will attract our high attention.
