Dredge Bow Coupling
Bow Coupling is mainly used for deck pipeline and the shore pipe commection, main part is welded of high strength ship plate. Equipped with a hydraulic quick connection device, when in use wunch and quick spherical joint connect to pipeline on the other side of the river or dumping through Rainbow nozzle directly.
Bow Coupling on TSHD
Technical Specifications
|
Iner Dia. of Pipe (mm) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
Weight(kg) |
Winch pull(kn) |
|
500 |
3500 |
4800 |
3100 |
1350 |
8000 |
125 |
|
600 |
3500 |
4800 |
3100 |
1350 |
11000 |
150 |
|
700 |
4700 |
6900 |
3600 |
1500 |
18000 |
250 |
|
800 |
5000 |
7400 |
3800 |
1700 |
20000 |
300 |
|
900 |
5000 |
8000 |
4000 |
1800 |
22000 |
300 |
|
1000 |
6000 |
8500 |
4400 |
2000 |
24000 |
400 |
Note: We can provide other size of Bow Coupling according to demand of user.
Working picture-1

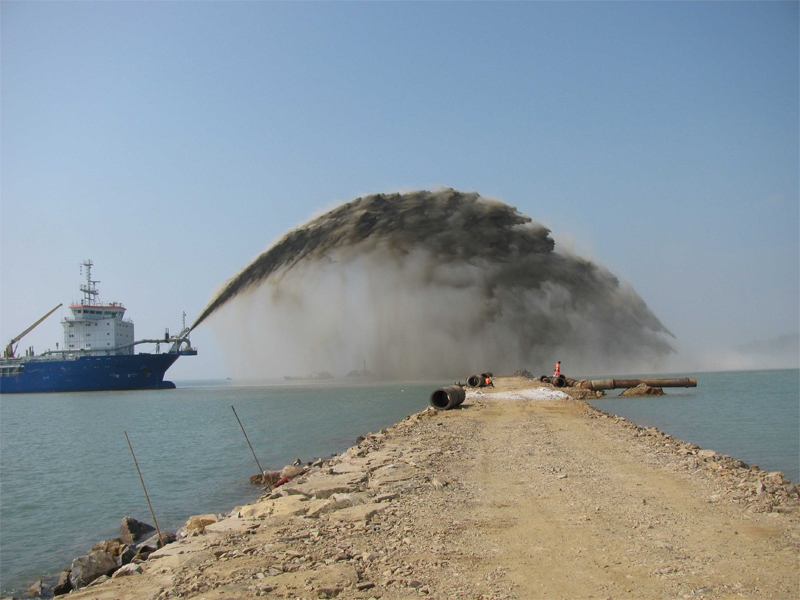

Working picture-2
