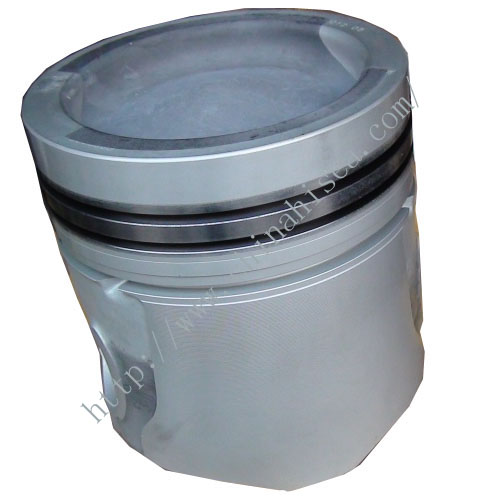

Cummins piston 3631242

Cummins piston 3631242:

3631242 is used for following engines:

KTA19GC, KTA19GC CM558, QSK19 CM500, QSK19 CM850 MCRS, K19, QSK19G, QSK19 CM2150 MCRS

Cummins piston 3631242 part list:

PP43958	Connecting Rod and Piston		Connecting Rod and Piston

	3811995	Rod, Engine Connecting	6	Recon Equiv. 3811995 NX/RX
1	3811994	Rod, Engine Connecting	1	Purchase Upper Level Assembly
2	3013265	Screw, Connecting Rod Cap	2
3	3043909	Bushing	1
4	69558	Dowel, Pin	4
5	205126	Washer, Plain	2	5/8 in
6	205840	Bearing, Connecting Rod	12
	3631242	Kit, Piston Engine	6
7	4095009	Pin, Piston	1
8	205269	Ring, Retaining	2
9	3096683	Piston, Engine	1	Serviced as 3631242
10	4089500	Set, Piston Ring	6
	4081176	Ring, Compression Piston	1
	3090450	Ring, Oil Piston	1
	3090460	Ring, Compression Piston	1

		$Service Parts
6	205841	Bearing, Connecting Rod	A/R	0.25 mm Oversize
6	205842	Bearing, Connecting Rod	A/R	0.50 mm Oversize
6	205843	Bearing, Connecting Rod	A/R	0.75 mm Oversize

Cummins piston 3631242 package:

Other Cummins pistons:
