Commercial Open Pattern Wire Rope Thimbles
Name: Commercial Open Pattern Wire Rope Thimbles
Application: used with steel wire ropes, not for lifting
Material: Mild steel
Finish: Electro galvanized

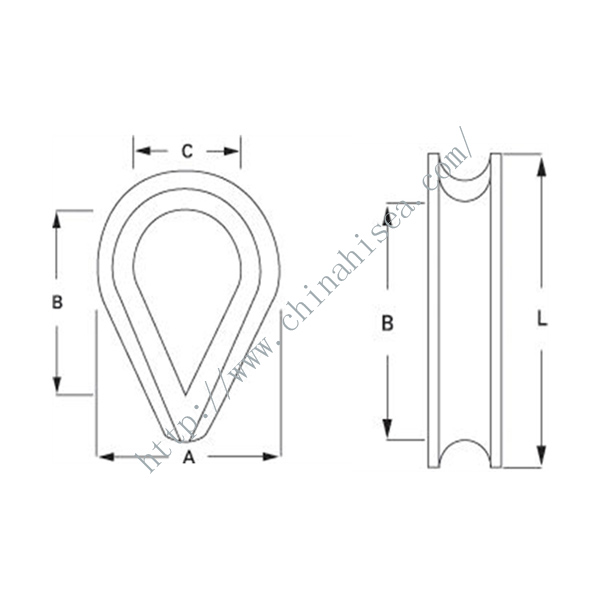

Technical Specification of these Commercial Open Pattern Wire Rope Thimbles
|
Model No. |
Rope Dia. |
Dimension (mm) |
Weight |
|||
|
(mm) |
L |
A |
B |
C |
kgs/100 |
|
|
COPT-12 |
2.5 |
22 |
16 |
19 |
12 |
0.5 |
|
COPT-13 |
3.5 |
26 |
17 |
21 |
13 |
0.8 |
|
COPT-17 |
4 |
25 |
19 |
16 |
17 |
0.4 |
|
COPT-16 |
5 |
31 |
22 |
22 |
16 |
0.8 |
|
COPT-19 |
6 |
37 |
29 |
26 |
19 |
1.4 |
|
COPT-24 |
8 |
51 |
38 |
34 |
24 |
2.8 |
|
COPT-32 |
10 |
64 |
44 |
42 |
32 |
4.8 |
|
COPT-38 |
12 |
76 |
57 |
51 |
38 |
8 |
|
COPT-40 |
14 |
82 |
60 |
57 |
40 |
10 |
|
COPT-42 |
16 |
89 |
64 |
60 |
42 |
15 |
|
COPT-45 |
18 |
102 |
69 |
67 |
45 |
22 |
|
COPT-51 |
20 |
115 |
79 |
76 |
51 |
25 |
|
COPT-54 |
22 |
127 |
89 |
83 |
54 |
32 |
|
COPT-64 |
24 |
140 |
102 |
88 |
64 |
46 |
|
COPT-68 |
26 |
152 |
105 |
102 |
68 |
66 |
|
COPT-73 |
28 |
165 |
115 |
110 |
73 |
77 |
|
COPT-79 |
30 |
178 |
121 |
115 |
79 |
80 |
|
COPT-93 |
32 |
203 |
133 |
140 |
93 |
130 |
|
COPT-115 |
36 |
229 |
184 |
177 |
115 |
540 |
|
COPT-120 |
40 |
254 |
206 |
198 |
120 |
730 |
