Cast iron drainage elbows

Cast iron drainage elbows introduction

Cast iron drainage elbows are indicated here with ten types: 11.25° elbow, 22.5° elbow, 45° short turn elbow, 45° long turn elbow, 45° street elbow, 60° short turn elbow, 90° short turn elbow, 90° reducing short turn elbow, 90° long turn elbow, 90° extra long turn elbow, 90° street elbow.

Cast iron drainage elbows specificaiton (contact us for more details)

Items	Sizes	Standards	Pressure	Connection	Application
11.25° elbow	NPS 1¹/₂-2; DN 40-50	ASME/ANSI, DIN, JIS, GOST, etc.	Class 125	flanged	Petrochemical, construction, water supply&drainage, light&heavy industry, frozen processing, sanitary, plumbing, fire protection, electric power, aerospace, shipbuilding
22.5° elbow	NPS 1¹/₂-2; DN 40-50
45° short turn elbow	NPS 1¹/₂-4; DN 40-100
45° long turn elbow	NPS 1¹/₂; DN 40
45° street elbow	NPS 1¹/₂-2; DN 40-50
60° short turn elbow	NPS 1¹/₂; DN 40
90° short turn elbow	NPS 1¹/₂-4; DN 40-100
90° reducing short turn elbow	NPS 1¹/₂-2; DN 40-50
90° long turn elbow	NPS 1¹/₂-4; DN 40-100
90° extra long turn elbow	NPS 1¹/₂-2; DN 40-50
90° street elbow	NPS 1¹/₂-2; DN 40-50

Cast iron drainage elbows show

11.25° elbow
22.5° elbow

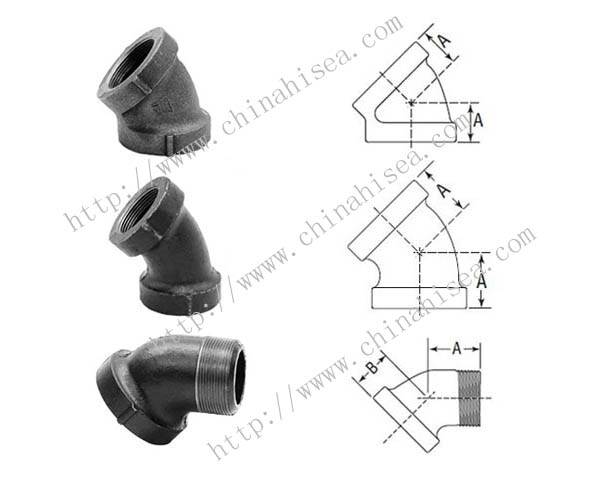

45° elbows(short turn, long turn, street)
45°-elbows(short turn; long turn; street).jpg
60° short turn elbow
90° elbows(short turn, reducing short turn, long turn, extra long turn, street)
90°-elbows(short turn; long turn; reducing short turn; street).jpg

Cast iron drainage elbows cooperation

We welcome win-win business cooperation for Cast iron drainage elbows all over the world. Send us enquiries or drawings for special designs. All informations will attract our high attention.
