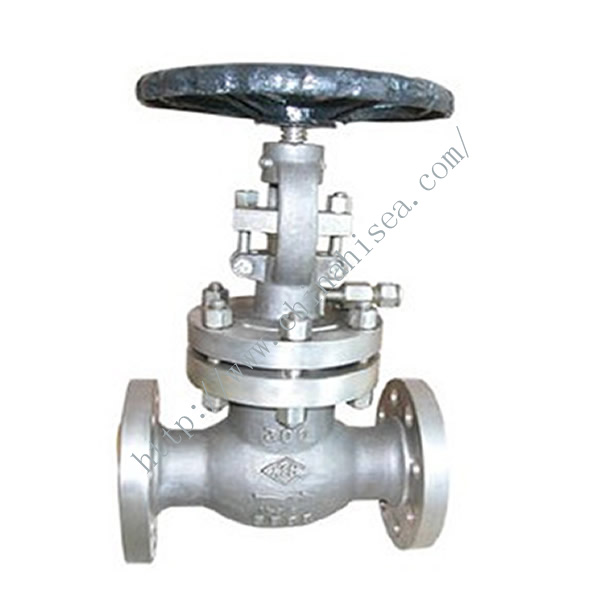

900LB Cast Steel Globe Valve

900LB Cast Steel Globe Valve:

1. Product Introduction:

(1). End to end, face to face dimension: ASME B16. 10

(2). Flange Dimension: ASME B 16.5

(3). Shell Wall to ASME B16.25

(4). 12" and Smaller valves have a one piece bonnet and yoke design

2. Material:

(1). Body: ASTM A216 Gr. WCB

(2). Bonnet: ASTM A216 Gr. WCB

(3). Stem: ASTM A182F6a

(4). Disc: ASTM A182 Gr. F6a(3"-4")

(5). Lock Nut: ASTM A182 Gr. F6a

(6). Fland: ASTM A182 Gr. F6a

(7). Stem Packing: Flexible Graphite

(8). Gland Flange: ASTM A105

(9). Gasket: Soft Iron

(10). Bonnet Bolt/ Nut: ASTM A193 Gr. B7/ A194 Gr. 2H

(11). Gland Bolt/ Nut: ASTM A193 Gr. B7/ A194 Gr. 2H

(12). Bonnet Bush: ASTM A182 Gr. F6a

(13). Yoke: ASTM A216 Gr. WCB

(14). Lantern Ring: ASTM A182 Gr. F6a

3. Size and Weight:

4. 900LB Cast Steel Globe Valve Working Theory Picture:

5. 900LB Cast Steel Globe Valve Drawing:

6. 900LB Cast Steel Globe Valve In Warehouse Picture:
