Galvanized Malleable DIN 741 Wire Rope Clips

Galvanized Malleable DIN 741 Wire Rope Clips

1. Type: DIN 741, malleable galvanized wire rope clips

2. All sizes of the wire rope clips have forged steel saddles

3. Entire wire rope clip is galvanized to resist corrosive and rust

4. Finish: galvanized to resist corrosive and rusting

5. Meet or exceed all requirement of ASME B30.26 or DIN 741

6. Material: carbon or malleable iron

7. Used for Wire Rope Size: 1/8 in. - 1 1/2 in. or 3mm - 40mm

Technical Specification of this Galvanized Malleable DIN 741 Wire Rope Clips

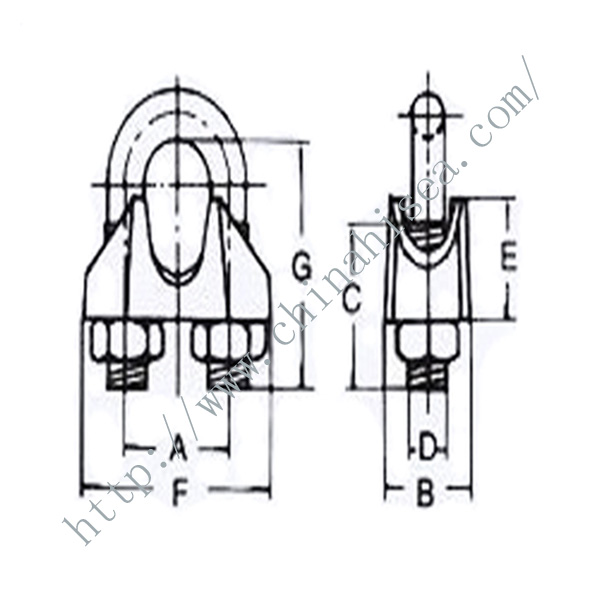

Model No.	Rope Dia.		Wire Rope Clip Main Dimension							Weight of 100 pcs (kg)
Model No.	mm	inch	A	B	C	D	E	F	G	Weight of 100 pcs (kg)
DIN741-09	3	1/8	9	10	12	4	10	21	16	1.4
DIN741-11	5	3/16	11	11	13	5	10	23	19	1.5
DIN741-13	6.5	1/4	13	12	15	5	11	26	23	2.1
DIN741-16	6	5/16	16	14	19	6	15	30	28	4.1
DIN741-19	10	3/8	19	18	22	8	17	34	34	6.8
DIN741-20	11	7/16	20	19	22	8	18	36	36	7.2
DIN741-24	13	1/2	24	23	30	10	21	42	45	13
DIN741-25	14	9/16	25	23	30	10	22	44	47	13.5
DIN741-29	16	5/8	29	26	33	12	26	50	51	21
DIN741-32	19	3/4	32	29	38	12	30	54	63	28
DIN741-37	22	7/8	37	33	44	14	34	61	71	40
DIN741-41	26	1	41	35	45	14	37	65	81	44
DIN741-48	30	1 1/8	48	37	50	16	43	74	94	66
DIN741-52	34	1 1/4	52	42	55	16	50	80	104	85
DIN741-58	40	1 1/2	58	45	60	16	55	88	124	104
