BS4504 PN10 Alloy Steel Flanges

BS4504 PN10 Alloy Steel Flanges

BS4504 PN10 Alloy Steel Flanges

BS4504 PN10 Alloy Steel Flanges introduction

BS4504 PN10 Alloy Steel Flanges are indicated with 5 types here: weld neck flange, plate flange, slip-on flange, socket welding flange, blind flange. These flanges are under nominal pressure of 1.0Mpa, according to British Standard(BS4504 PN10).

BS4504 PN10 Alloy Steel Flanges specification

Type Alloy steel flanges: weld neck flange, plate flange, slip-on flange, socket welding flange, blind flange
Nominal size DN10-3000
Nominal pressure PN10; 1.0Mpa
Steel processing Forged
Certificate ABS, CCS, DNV, GL, BV, LR, KR, etc.
Application Petroleum, chemical, food industry, marine, automobile industry, rail building, general engineering, etc.

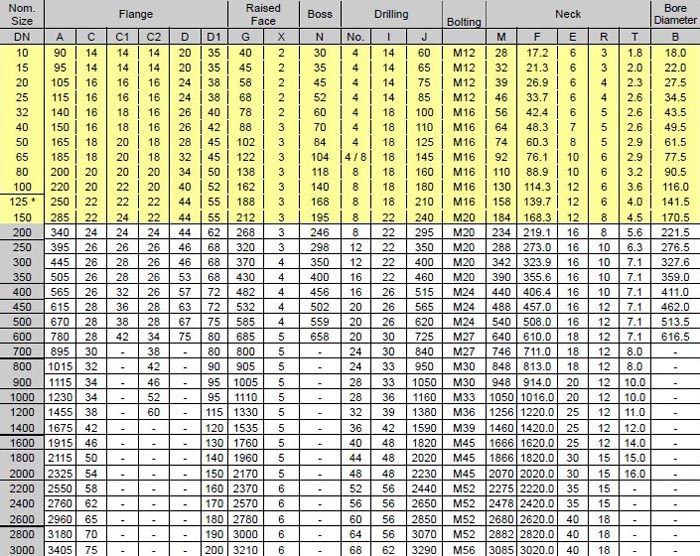

BS4504 PN10 Alloy Steel Flanges dimensions (refer to the catalogue for more)

BS4504 PN10 Alloy Steel Flanges show

BS4504 PN10 Alloy Steel Flanges forging

BS4504 PN10 Alloy Steel Flanges processing

BS4504 PN10 Alloy Steel Flanges workshop

BS4504 PN10 Alloy Steel Flanges cooperation

Feel free to contact us for BS4504 PN10 Alloy Steel Flanges. Send us enquiries or drawings for special designs. All informations will attract our high attention.
