Alloy Steel Kenter Shackle

Alloy Steel Kenter Shackle

Alloy Steel Kenter Shackle:

Made from alloy steel the Kenter Shackle is a joining shackle used specifically to join two stud link chain elements together to form a common or larger link.

Details:

1.Material: Alloy steel

2.Diameter: 11mm-162mm

3.Surface treatment: Black bitumen paint, anti-rusting paint or customized

marine kenter shackle.jpg

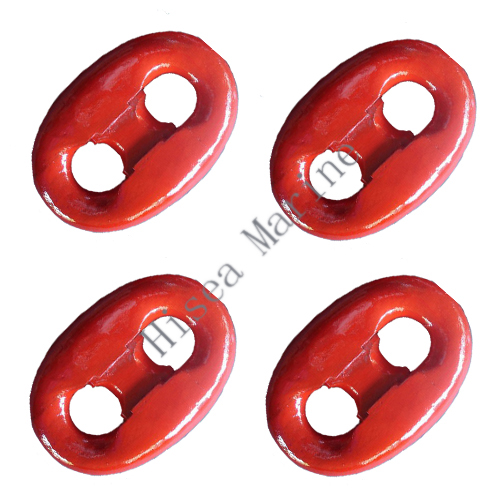

Kenter joining shackle

kenter shackle drawing.jpg

Alloy steel kenter shackle structure size

marine kenter shackle_1.jpg

Kerter shackle dimension drawing

Specifications:

Diameter
(mm)
d4 L B K h2 R4
11 11 66 46 17 4 7
12.5 12.5 75 53 19 4 8.5
14 14 84 59 21 6 9.5
16 16 96 67 24 6 10.5
17.5 17.5 105 74 27 6 12
19 19 114 80 29 6 13
20.5 20.5 123 86 31 6 14
22 22 132 92 33 6 15
24 24 144 101 36 10 16
26 26 156 109 40 10 17.5
28 28 168 118 43 10 19
30 30 180 126 46 10 20
32 32 192 134 49 10 21.5
34 34 204 143 52 12 23
36 36 216 151 55 12 24
38 38 228 160 58 12 25
40 40 240 168 61 12 27
42 42 252 176 64 12 28
44 44 265 185 67 16 29
46 46 276 193 70 16 31
48 48 288 202 73 16 32
50 50 300 210 76 16 34
52 52 312 218 79 16 35
54 54 324 227 82 20 36
56 56 336 235 85 20 38
58 58 348 244 88 20 39
60 60 360 252 91 20 40
62 62 372 260 94 20 42
64 64 384 269 97 20 43
66 66 396 277 100 25 44
68 68 408 286 103 25 46
70 70 420 294 106 25 47
73 73 438 307 111 25 49
76 76 456 319 115 25 51
78 78 468 328 119 25 52
81 81 486 340 123 30 54
84 84 504 353 128 30 57
87 87 522 365 132 30 58
90 90 540 378 137 30 60
92 92 552 386 140 30 62
95 95 570 399 144 35 64
97 97 582 407 147 35 65
100 100 600 420 152 35 67
102 102 612 428 155 35 68
105 105 630 440 160 35 70
107 107 642 449 163 35 72
111 111 666 466 169 40 74
114 114 684 479 173 40 76
117 117 702 491 178 40 78
120 120 720 504 182 40 80
122 122 732 512 185 40 82
124 124 744 521 188 40 83
127 127 762 533 192 40 85
130 130 780 546 198 50 87
132 132 792 554 201 50 88
137 137 822 575 208 50 92
142 142 852 596 216 50 95
147 147 882 617 223 50 98
152 152 912 638 231 50 102
157 157 942 659 239 50 105
162 162 972 680 246 50 109
